21961002 GENESIS

Product Overview

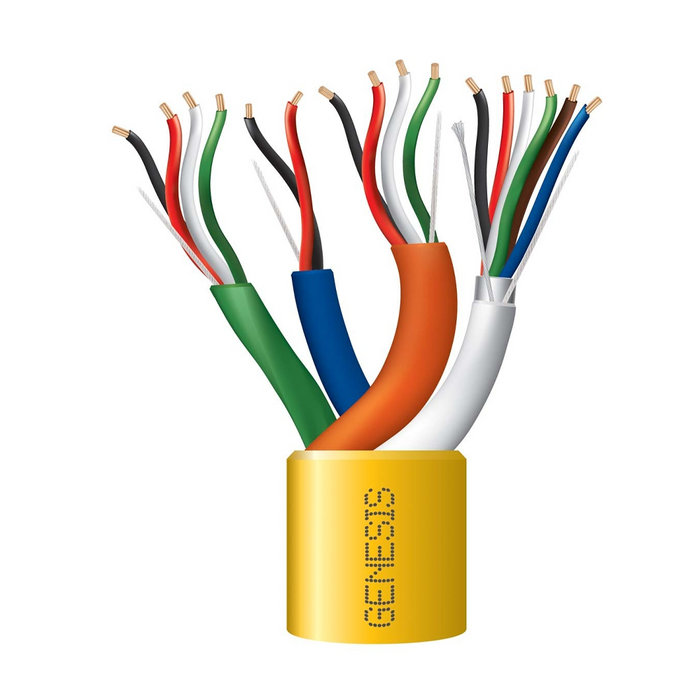

The Genesis 21961002 is a comprehensive composite cable designed to dramatically simplify and expedite the wiring of access points. This innovative solution combines four individual cables, a 22/6 stranded shielded card reader cable, a 22/4 stranded request-to-exit cable, a 22/2 stranded door contact cable, and an 18/4 stranded lock power cable, into a single, easy-to-pull bundle. Rated CMR (Riser) and FT4, it is approved for safe vertical installations between floors in commercial buildings. Packaged on a durable 1000-foot reel, this cable features a highly visible yellow PVC jacket. It streamlines the installation process by eliminating the need to pull multiple separate cables, while countdown length markings and a rip cord ensure an efficient workflow.

Key Features

• Composite access control cable bundle
• Includes 22/6 shielded, 22/4, 22/2, and 18/4 stranded components
• Rated CMR (Riser) for vertical installations
• Supplied on a 1000-foot (305m) reel
• Highly visible yellow PVC jacket
• Shielded card reader component for signal integrity
• Stranded bare copper conductors for excellent conductivity
• Countdown length markings and rip cord included
• Sunlight resistant (UV) rated
• Rated for 300 Volts operation
