31961002 GENESIS

Product Overview

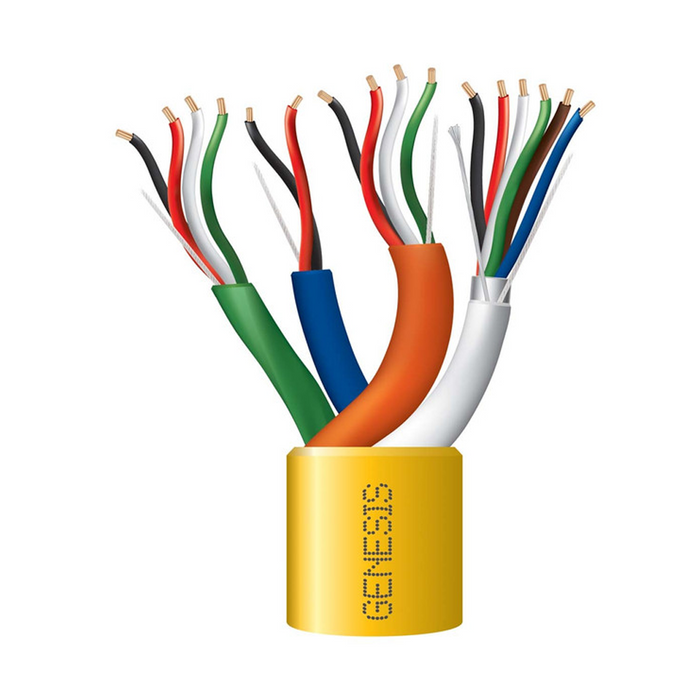

The Genesis 31961002 is a premium composite access control cable designed to streamline high-security installations by housing four distinct component cables within a single overall jacket. This "all-in-one" solution includes a 22/6 shielded cable for card readers, a 22/4 stranded cable for door strikes or motion sensors, a 22/2 stranded cable for door contacts, and an 18/4 stranded cable for high-current power. By consolidating these functions into a single pull, it significantly reduces labor costs and protects individual conductors with a durable, high-visibility yellow plenum PVC jacket. Rated CMP (Plenum) and FT6, it is fully approved for safe installation within environmental air-handling spaces. Supplied on a 1000-foot reel, it features color-coded components and countdown length markings to ensure a professional, efficient, and well-organized head-end.

Key Features

• Composite all-in-one access control cable
• Single overall jacket for maximum protection and easier pulls
• 22 AWG 6-conductor shielded component for card readers
• 18 AWG 4-conductor component for high-current power
• 22 AWG 4-conductor and 22 AWG 2-conductor components for sensors and contacts
• Rated CMP (Plenum) for use in environmental air spaces
• Yellow PVC jacket for high visibility and circuit identification
• Stranded bare copper conductors for maximum flexibility
• Low-Smoke PVC insulation for safety and compliance
