WHEELOCK ELCHW

Product Overview

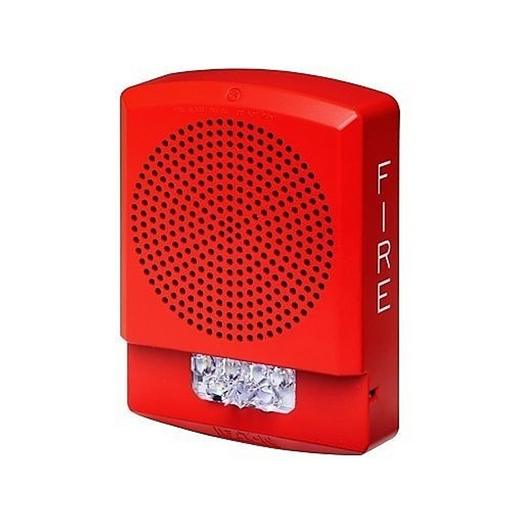

 The Eaton Wheelock Eluxa series includes electronic chimes (ELCH) and chime strobes (ELCHS) designed for indoor wall and ceiling applications. These devices offer field-selectable tones including 1 Hz, 2 Hz, Coded, and Temporal 3 (T3), making them adaptable for various signaling requirements. The chime strobes incorporate advanced, energy-efficient LED technology with multiple candela settings, providing reliable visual notification while minimizing power consumption. With a low-profile, modern design, Eluxa appliances blend seamlessly into hospital, institutional, and other professional environments. Eaton’s innovative 2-wire circuit allows the audible tone to be silenced while maintaining strobe operation via Wheelock’s synchronization protocol, or alternatively, 4-wire operation enables independent control of both audible and visual signals. The devices are 24V and can be pre-wired and pre-tested via a hinged mounting plate, simplifying installation.

Key Features

• Selectable Chime Modes: 1 Hz, 2 Hz, Coded, and Temporal 3 (T3)
• Advanced LED Efficiency: Minimizes current draw and reduces overall system costs
• Adjustable Volume: Ensures proper audibility with anechoic sound levels up to 78 dB
• Versatile Installation: Pre-wire/pre-test with hinged mounting plate for wall and ceiling applications
• Multiple Candela Settings: Wall: 15, 30, 75, 110, 135, 185 cd; Ceiling: 15, 30, 75, 110, 150, 177 cd
• Compliance & Approvals: UL 1638, UL 464, CAN/ULC-S525, CAN/ULC-S526, CSFM, FM, RoHS compliant, mercury-free
• System Compatibility: Works with all FACP panels compatible with Exceder LED3 and Wheelock RSS strobes, maintaining backward compatibility with existing installations
• Ideal Applications: Hospitals, institutional facilities, and other environments requiring reliable audible and visual notification
