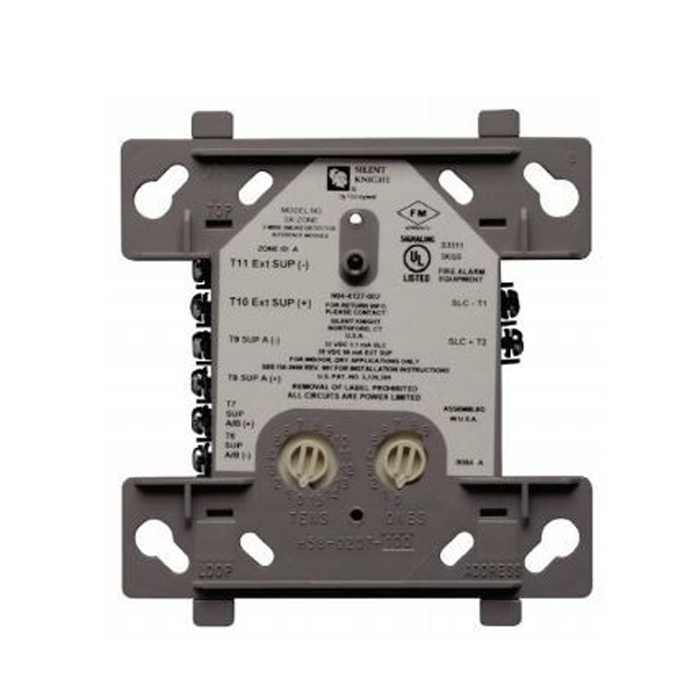

IDP-ZONE FARENHYT

Product Overview

The Honeywell IDP-Zone is an addressable two-wire interface module designed for use with Farenhyt Series fire alarm control panels (FACPs). It enables the FACP to interface with and monitor conventional two-wire smoke detectors, allowing integration of existing devices in retrofit or upgrade projects.

The module transmits the status of an entire zone of two-wire detectors to the FACP, reporting conditions as normal, open, or alarm. The IDP-Zone supervises both the detectors and the connection of the external power supply to ensure reliable operation.

Key Features

• Addressable two-wire interface module compatible with Farenhyt Series FACPs
• Interfaces with conventional two-wire smoke detectors for retrofit applications
• Monitors one full zone of two-wire detectors
• Reports status conditions as normal, open, or alarm
• Supervises detector wiring and external power supply connections
• Each module is individually addressed via the FACP SLC loop
• Compatible with UL-listed two-wire smoke detectors
• Enables integration of existing conventional devices into an addressable system
• Reliable, field-proven performance for trouble-free operation
