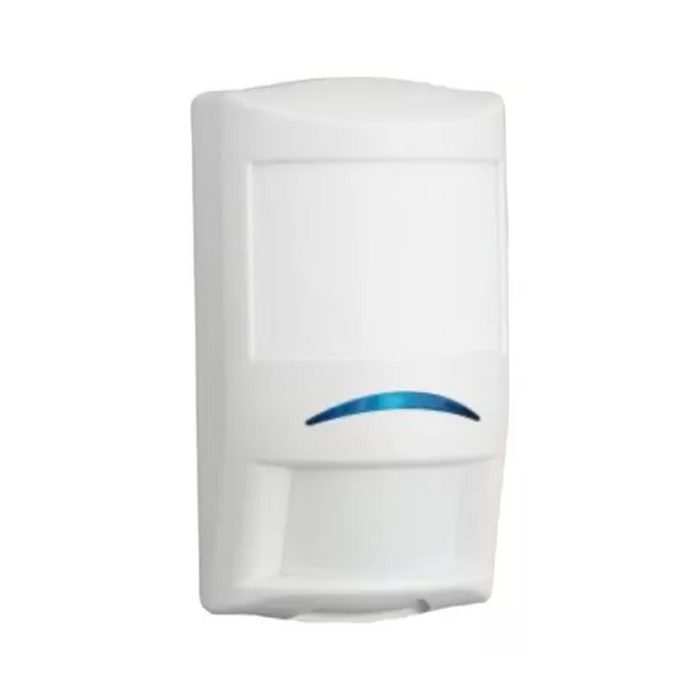

ISC-PPR1-W16 BOSCH

Product Overview

The Bosch ISC-PPR1-W16 Professional Series PIR is a high-performance Dual PIR motion detector designed for large-scale commercial applications. It utilizes two independent PIR sensors and Bosch’s proprietary Sensor Data Fusion technology to analyze and compare signals, virtually eliminating false alarms from non-human sources. The unit features Tri-Focus Optics, which uses three separate focal lengths (long, intermediate, and short-range) to provide seamless, gap-free coverage. With its massive 60 ft x 80 ft footprint and 10,000 Lux white light immunity, it is ideal for large warehouses, high-ceiling retail spaces, and open-plan offices.

Key Features

• Dual PIR Technology: Uses two separate pyroelectric sensors for cross-verification of targets.
• Sensor Data Fusion: Advanced algorithm integrates data from both PIR sensors to confirm alarms.
• Tri-Focus Optics: Eliminates "dead zones" by providing three distinct levels of focal detection.
• Coverage: Standard 60 ft x 80 ft (18 m x 25 m); field-selectable to 25 ft x 33 ft (8 m x 10 m).
• White Light Immunity: Superior 10,000 Lux resistance prevents triggers from headlights or sunlight.
• Dynamic Temperature Compensation: Automatically adjusts sensitivity as room temperature approaches human body temperature.
• Installer Tools: Integrated bubble level, sliding terminal block, and self-locking enclosure for rapid deployment.
• Mounting Height: Flexible mounting from 7 ft to 10 ft (2.1 m to 3.0 m) without manual adjustment.
