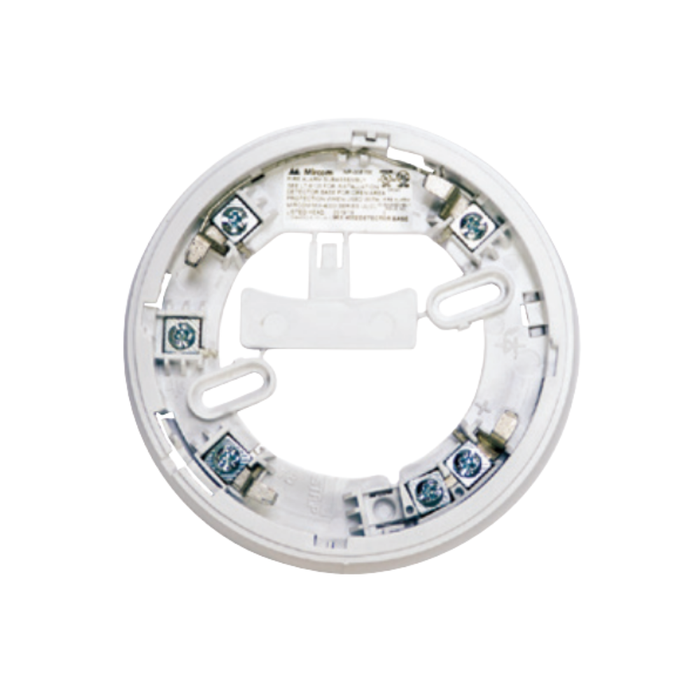

MIX-4002 MIRCOM

Product Overview

The Mircom MIX-4002 is a 6-inch intelligent mounting base designed for use with the MIX-4000 series of addressable detectors. This base provides the electrical interface between the detector head and the Signaling Line Circuit (SLC). It features an "easy-click" design for fast installation and is equipped with a built-in locking tab to prevent unauthorized detector removal. The MIX-4002 is designed for high-speed digital communication and includes a specialized terminal for connecting a remote LED indicator (MIX-4000-LED).

Key Features

• Compatibility: Specifically designed for MIX-4000 series sensors (e.g., MIX-4010, MIX-4020, MIX-4030).
• Mounting Versatility: Mounts directly to 4-inch square, 3.5-inch octagonal, or single-gang electrical boxes.
• Remote Output: Includes a dedicated terminal for the connection of a remote alarm LED.
• Tamper Resistance: Features a breakable plastic tab that, when removed, requires a tool to release the detector head.
• Wiring Efficiency: Large wire entry port and high-visibility terminal markings; terminals support 12 to 18 AWG wire.
• Address Retention: The detector address is stored in the sensor head, allowing the base to remain purely passive and easier to swap.
• Material: Durable, flame-retardant white plastic designed to match the sensor aesthetic.
• Dimensions: 6-inch (152.4 mm) diameter.
