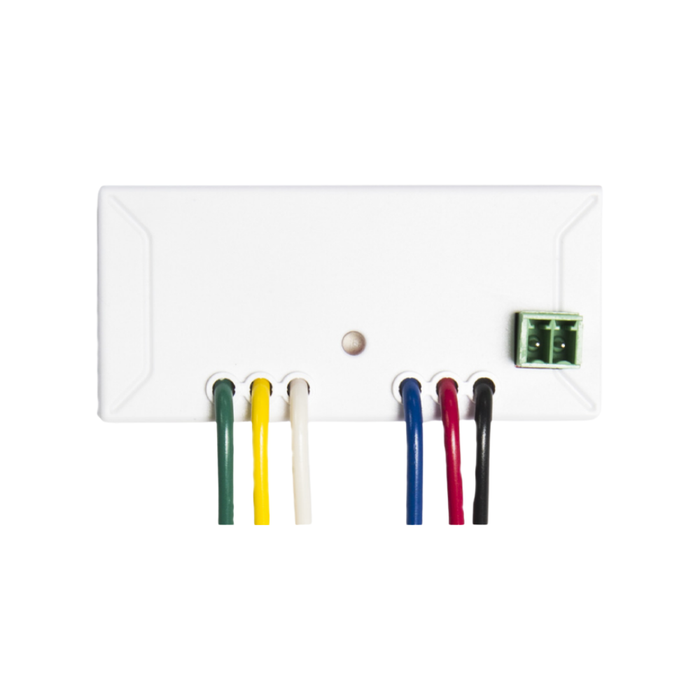

MIX-4041 MIRCOM

Product Overview

The Mircom MIX-4041 is an intelligent Mini Dual Input Module designed to monitor two independent Class B dry-contact input circuits while occupying only one address on the Signaling Line Circuit (SLC). Its compact, "mini" form factor allows for installation inside standard electrical backboxes behind the monitored device. This module is part of the MIX-4000 series and is optimized for use with Mircom's FleX-Net™ and FX-400 series panels. It eliminates the need for two separate modules when monitoring adjacent devices, such as a waterflow switch and a tamper switch, significantly reducing loop address consumption and wiring complexity.

Key Features

• Dual Monitoring, Single Address: Monitors two independent (Class B) circuits using only one SLC address.
• Miniature Design: Compact size allows for unobtrusive mounting inside a 4-inch square box or directly behind monitored devices.
• Advanced Protocol: Specifically designed for the MIX-4000 series high-speed communication protocol.
• Operating Voltage: 15 to 30 VDC.
• Current Consumption: 1.45 mA (Standby); 4.1 mA (Alarm - LEDs on).
• Programming: Digitally addressed via the MIX-4090 handheld programmer (no rotary switches).
• Supervision: Monitors for open circuits using 3.9K Ohm End-of-Line (EOL) resistors.
• Visual Status: Bi-color LED flashes green during polling and latches red upon activation (panel controlled).
• Temperature Range: 32°F to 120°F (0°C to 49°C).
