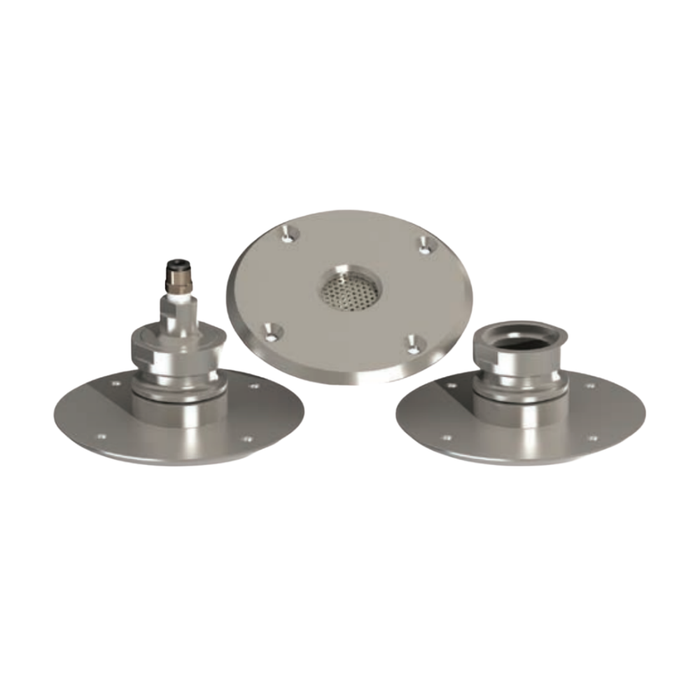

VSP-610-US VESDA

Product Overview

The VSP-610-US is a Tamper-Proof Flush-Mount Sampling Point specifically designed for use with VESDA-E VEA series aspirating smoke detectors. Unlike standard 25 mm pipe sampling points, this component is engineered to interface with 6 mm microbore flexible tubing. It is intended for installation in high-security environments such as correctional facilities, mental health wards, and public schools where standard sampling points are at risk of vandalism or removal. The VSP-610-US provides a secure, low-profile air intake that is nearly impossible to grip or dismantle from the room side, ensuring continuous life safety monitoring in challenging locations.

Key Features

• VEA System Specific: Designed exclusively for use with VESDA-E VEA-020 and VEA-040 microbore aspirating smoke detectors.
• Tamper-Resistant Construction: Features a heavy-duty stainless steel faceplate secured with four torx-head security screws to prevent unauthorized removal.
• Microbore Connection: Includes a push-fit connector on the rear specifically sized for 6 mm (OD) VEA sampling tubing.
• Flush-Mount Design: Sits nearly flush with the ceiling or wall surface to minimize the risk of being used as a ligature point or being struck by objects.
• Anti-Clog Screen: Integrated fine-mesh screen prevents large debris or foreign objects from being pushed into the microbore lines, reducing maintenance calls.
• Easy Maintenance: The internal filter and sampling orifice can be serviced from the front side by removing the security screws, eliminating the need for interstitial space access.
• US Standard: This "-US" version is sized for standard US electrical backbox mounting or direct-to-surface installation using the provided hardware.
