Product Overview

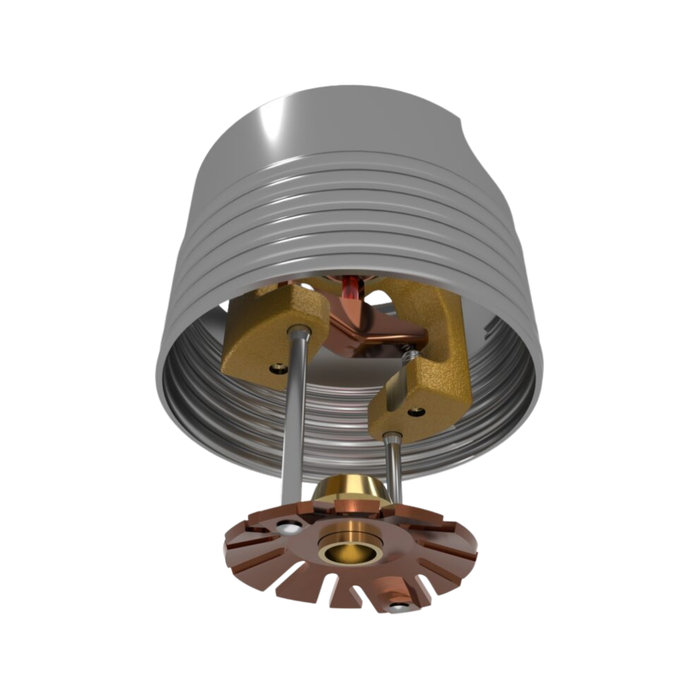

The Viking Mirage VK464 (PN 13614AB) is a Quick Response, Standard Coverage Concealed Pendent Sprinkler featuring a K8.0 orifice. This model is specifically designed for Ordinary Hazard and Storage applications where higher water density is required at lower pressures compared to standard K5.6 heads. It utilizes a 175°F (79°C) 3mm glass bulb as the thermosensitive element. The two-piece design allows the sprinkler to be installed and the system to be pressure-tested before the cover plate is attached, while providing up to 1/2" of vertical adjustment to ensure a flush-to-ceiling finish.



Key Features



  • SIN: VK464 (K8.0 / 115 metric)
  • Response Type: Quick Response (QR)
  • Thread Size: 3/4" NPT (20mm BSP)
  • Max Working Pressure: 175 PSI (12 bar)
  • Temperature Ratings: 175°F (79°C) Sprinkler; 135°F (57°C) or 165°F (74°C) Cover Plate
  • Adjustable Concealment: Provides 1/2" (12.7mm) of vertical adjustment to compensate for ceiling elevation variations.
  • Storage Rated: UL listed for Ordinary Hazard and Miscellaneous Storage applications per NFPA 13.
  • Finish: Brass body construction with various cover plate finish options available (sold separately).
