B114LP SYSTEM SENSOR
Original price
$103.12
-
Original price
$103.12
Original price
$103.12
$103.12
-
$103.12
Current price
$103.12
Availability :
11 in stock, ready to be shipped
Product Overview

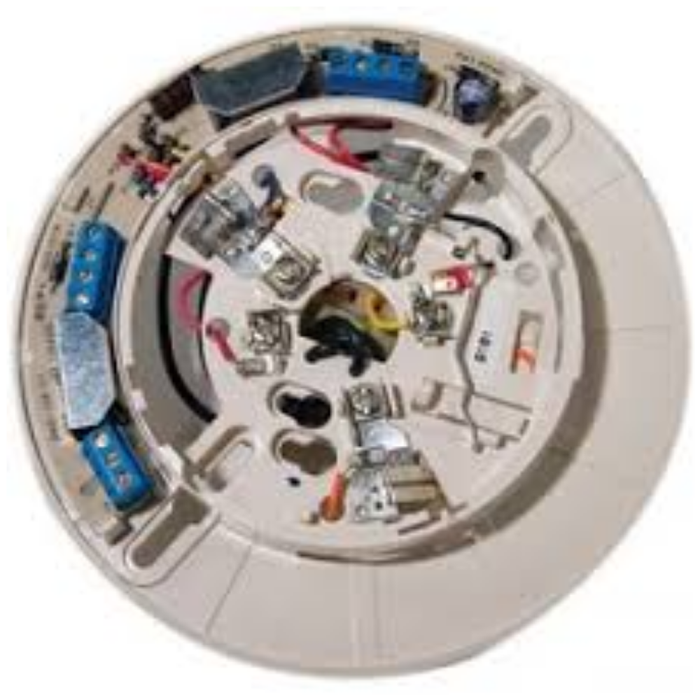

The B114LP detector base is designed for use with System Sensor 2151 photoelectric and 1151 ionization detector heads. This 4-wire base features screw terminals for power, ground, relay connections, and an optional RA400Z/RA100Z remote annunciator. A built-in resistor limits current during alarm conditions, enhancing system protection.
Key Features
- Low standby current
- Two LEDs blink in standby for status indication
- Low-profile smoke detector design
- Compatible with 24 V or 120 V supply
- Easy plug-in installation of detector heads
- Mounts on standard electrical boxes
- Removable cover and insect screen for field cleaning
- Supports field sensitivity metering using SENS-RDR to meet NFPA 72 requirements
