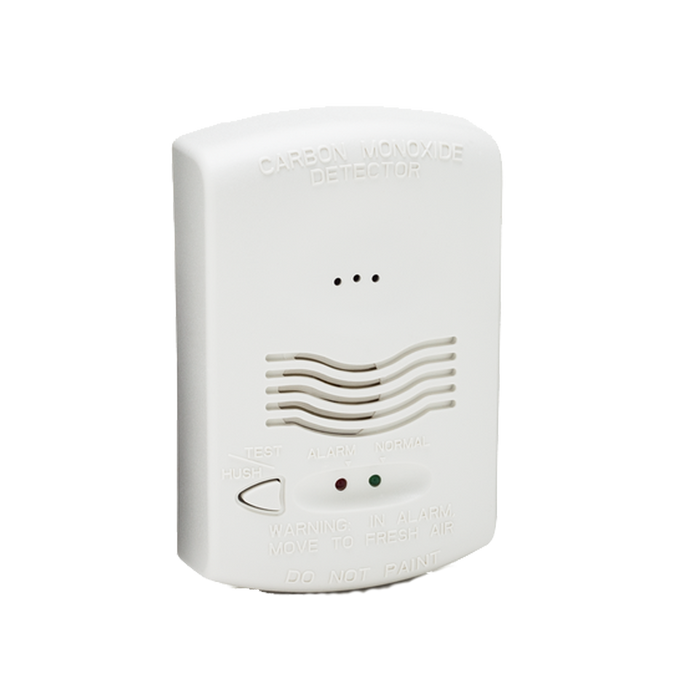

CO1224T SYSTEM SENSOR

Product Overview

 The CO1224T carbon monoxide detector features RealTest® technology, allowing functional testing of the electrochemical CO sensing cell using canned CO gas in compliance with NFPA 720 requirements.

When hazardous CO levels are detected, the CO1224T alerts occupants with an audible and visual ANSI Temporal 4 alarm. Designed for system operation, it supports 24/7 central station monitoring to provide continuous protection. The detector is UL 2075 listed and includes a code-required trouble relay to signal sensor failure or end-of-life conditions to the control panel. Low current draw and 12/24 VDC operation allow compatibility with most fire and security alarm panels while supporting efficient system expansion.

Key Features

• Electrochemical CO sensing technology for accurate detection
• RealTest functionality using canned CO
• ANSI Temporal 4 audible/visual alarm signaling
• UL 2075 listed for system applications
• Code-required trouble relay for fault and end-of-life signaling
• SEMS terminals for secure, supervised wiring
• Low current consumption for system efficiency
• Wall or ceiling mounting options
• Operates on 12 or 24 VDC
