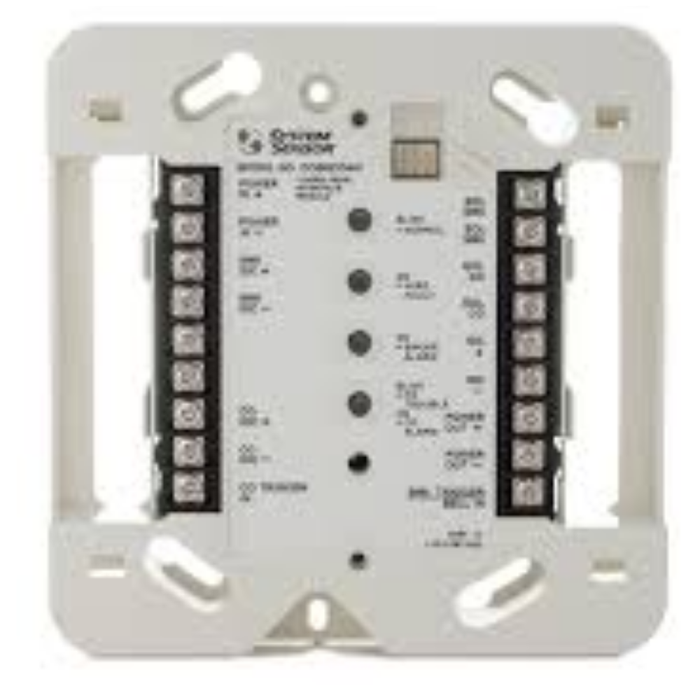

COSMOD4W SYSTEM SENSOR

Product Overview

 The i4 Interface Module connects up to 12 i4 Series or compatible i3 Series detectors to a wide range of fire alarm control panels using only 2 to 3 zones (smoke, CO, and optional trouble). Compatible with COSMO-4W and 4WTA-B detectors, it supports Temp 3 signaling for smoke and Temp 4 for CO. All connected detectors are interconnected, so when one alarms, all sound. The module mounts to a 4-11/16" square back box, features durable SEMS screw terminals, and provides LED status indication for normal operation, alarms, faults, maintenance, and end-of-life.

Key Features

• Integrates up to 12 compatible detectors
• Compatible with COSMO-4W and 4WTA-B detectors
• Distinct smoke and CO signals to the panel
• Interconnects all device sounders
• No RSS-MOD required
• Optional trigger inputs for multiple modules
