Silent Knight EVS-LOC

Product Overview

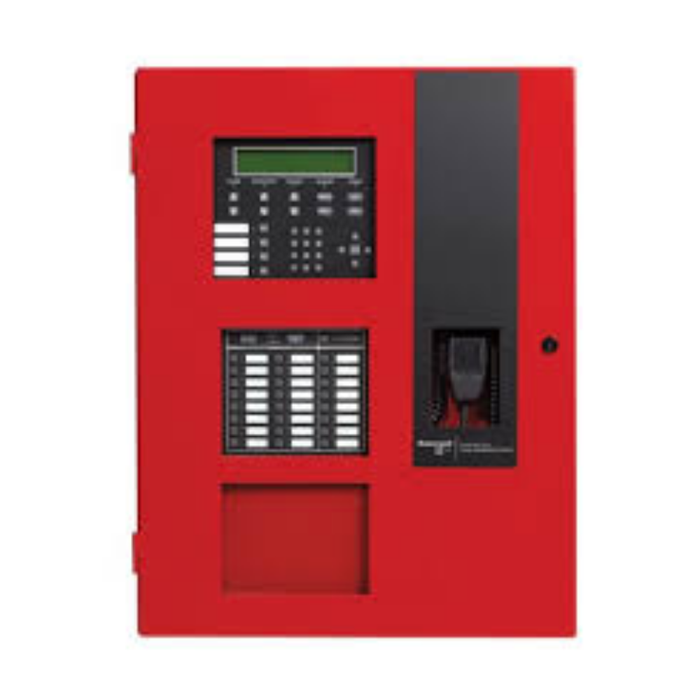

The EVS-LOC local operator console is a powerful addition to Silent Knight emergency voice and mass notification systems. It combines a supervised remote microphone and annunciator in a single unit and meets UL requirements for a Local Operator Console (LOC). Designed to extend system control beyond the main panel, the EVS-LOC allows full operation of the fire alarm and emergency communication system, including live voice paging, silencing, and system reset.

Equipped with a large 4x40 backlit LCD display with up to 160 characters, the EVS-LOC provides clear and detailed system messaging. Four programmable buttons help reduce response time by simplifying routine or complex emergency actions. The console also supports All Call and Non-Active Call functions and allows EVS messages to be set as priority over fire, ensuring effective communication during critical events.

Key Features

• Supervised remote microphone and annunciator in one console
• Full system control, including alarm silence and reset
• Large 4x40 LCD backlit display (up to 160 characters)
• Four programmable buttons for fast execution of routine or complex tasks
• All Call and Non-Active Call buttons for quick speaker group selection
• Allows EVS messages to be prioritized over fire events
• Extends emergency voice system access to additional building areas
• Supports up to four EVS-LOC units per system (total of five command units including the main panel)
• Accepts programmable trigger inputs from external systems (via RVM or 5880 module)
• Supports up to 32 mappable speaker circuits when used with EVS amplifiers
• Optional VIP-TR trim ring available for a clean, flush-mounted appearance
