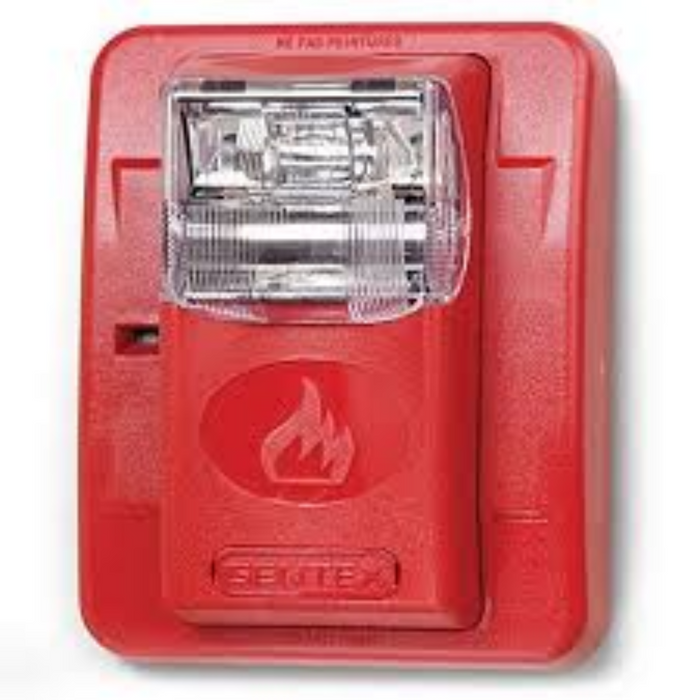

GES24-177WR GENTEX
Warranty Terms and Conditions

GES24-177WR GENTEX

by GENTEX
$47.59 - $47.59
$47.59
$47.59 - $47.59
$47.59
Availability :
In stock

DATASHEET



Product Overview



The Gentex GES24-177WR is a high-intensity, low-profile visual notification strobe designed for wall-mount applications in 24 VDC life safety systems. This model features a White faceplate with Red "FIRE" lettering and a fixed 177 candela output, making it ideal for large open areas or high-ambient noise environments where high-visibility signaling is required. The GES24-177WR is a 2-wire polarized appliance that utilizes the patented Super-Slide® bracket for easy pre-wiring and the Checkmate® system for instant voltage verification without removing the device.



Key Features



  • Device Type: Strobe (Visual Only).
  • Color: White faceplate with Red "FIRE" text (WR suffix).
  • Strobe Output: Fixed 177 Candela (High-intensity).
  • Operating Voltage: Nominal 24 VDC (Range 16–33 VDC).
  • Super-Slide® Bracket: Specialized plastic bracket for efficient pre-wiring and supervision testing.
  • Checkmate®: Built-in terminals for instant voltage verification using a voltmeter.
  • Synchronization: Supports 1Hz flash synchronization via the Gentex AVSM module or compatible FACP protocol.
  • Mounting: Standard 4-inch square or double-gang electrical box.
  • Compliance: ANSI/UL 1971 Listed; ADA/NFPA compliant.
