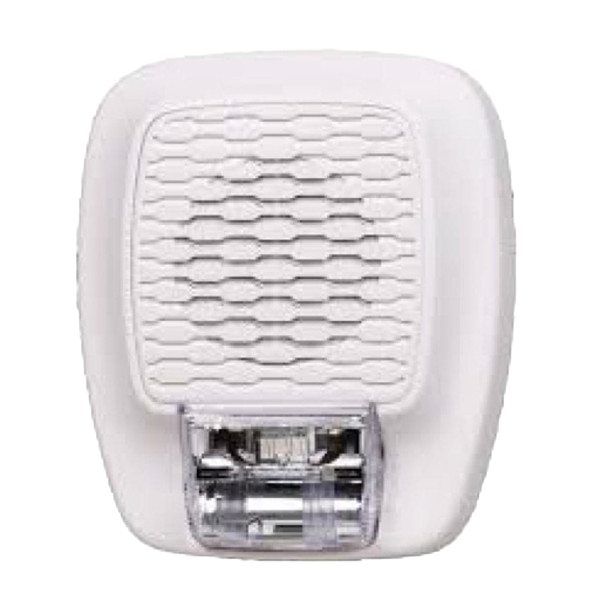

GHSLF110W GENTEX

Product Overview

The GHSLF Series is a high-quality, low-profile, low-frequency audible and visible appliance that delivers reliable audible and visual alarms. Ideal for occupancies requiring notification appliances, the GHSLF horn produces a 520 Hz square wave, Temporal 3 tone, with a jumper to select normal or loud decibel output. A Temporal 4 pattern is available when used with the Gentex GTSM Synchronization Control Module.

Available with fixed strobe candela options of 15, 110, and 177, the GHSLF ships with a 4" metal mounting plate featuring the Super-Slide® bracket for easy supervision testing. A locking mechanism secures the product to the bracket without visible screws. The patented Checkmate® Instant Voltage Verification allows installers to verify voltage drop and match the system blueprint. The GHSLF is listed to ANSI/UL 1971, ANSI/UL 464, CAN/ULC S525, and CAN/ULC S526, and is warranted for three years from date of purchase.

Key Features

• Low-frequency audible and visible alarm
• 520 Hz square wave, Temporal 3 tone
• Jumper selection for normal or loud decibel output
• Fixed candela options: 15, 110, 177
• Super-Slide® Bracket for easy supervision
• Checkmate® Instant Voltage Verification
• Listed to ANSI/UL 1971, 464, CAN/ULC S525, S526
