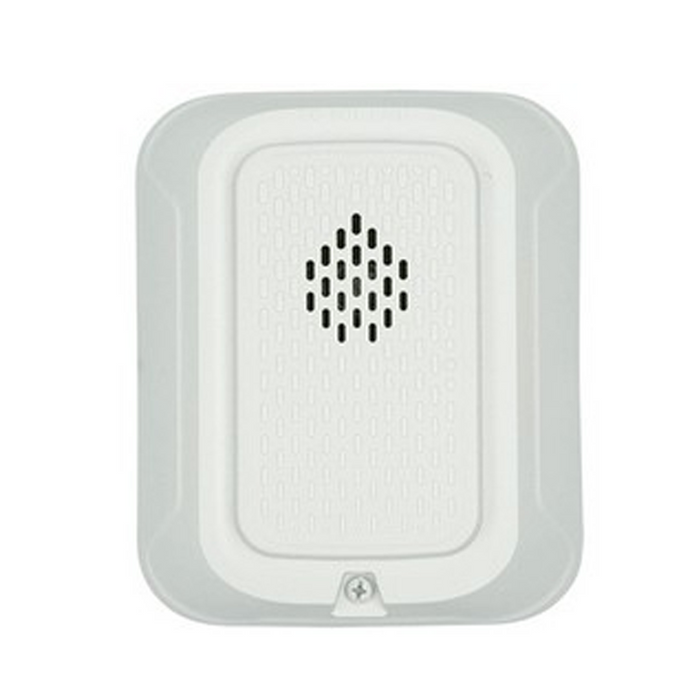

SYSTEM SENSOR HWL

Product Overview

 The System Sensor L-Series provides versatile, low-current horns, strobes, and horn-strobe devices with modern design. Available in white or red housings, standard and compact sizes, and plain, FIRE, or FUEGO markings, these wall-mount devices are easy to install and highly adaptable. Plug-in design minimizes back box intrusion, reducing installation errors and ground faults. A universal mounting plate with onboard shorting spring allows wiring continuity verification before installation. Field-selectable candela settings, automatic 12- or 24-volt operation, and rotary horn tone with two volume options provide flexibility for various applications.

Key Features

• Modern aesthetic design
• Compact and standard wall-mount options
• Plug-in design for reliable installation
• Tamper-resistant construction
• Automatic 12- or 24-volt operation at 15 and 30 cd
• Field-selectable candela: 15, 30, 75, 95, 110, 135, 185 cd
• Horn rated at 88+ dBA at 16 V
• Rotary switch for horn tone and two volume settings
• Universal mounting plate for all wall units
• Mounting plate shorting spring for wiring continuity checks
