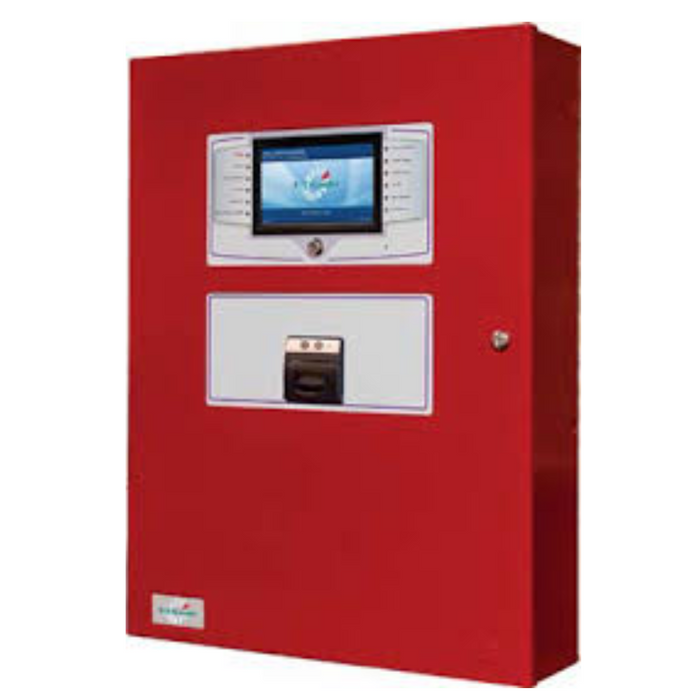

LA203H1-10 HOCHIKI

The Hochiki LA203H1-10 is an analog addressable fire alarm control panel from the FireNET® L@titude™ series, configured with a 4-slot standard red enclosure featuring a clear Plexiglas viewing door. Operating with a heavy-duty 10.25 Amp power supply,
this base configuration comes equipped with two Signaling Line Circuits (SLCs) utilizing the Hochiki protocol, supporting up to 400 mA of loop current and 400 subaddress points per loop (800 points per dual-loop module). The modular architecture allows expansion up to 8 loops per cabinet via plug-in modules.
The panel features an intuitive 7-inch full-color resistive touchscreen interface, 24 programmable soft function keys, 4 programmable Class B (or 2 Class A) Notification Appliance Circuits (NACs) with internal multi-brand synchronization,
3 programmable inputs, and 5 programmable Form C relays. This model ships with no integrated onboard network card or media gateway communicator and carries UL 864 10th Edition, FM, and CSFM approvals.
