LNL-AL400ULX LENEL
Warranty Terms and Conditions

LNL-AL400ULX LENEL

by LENEL
Sold out
$519.57 - $519.57
$519.57
$519.57 - $519.57
$519.57
Availability :
Out of stock

dataSheet

Product Overview

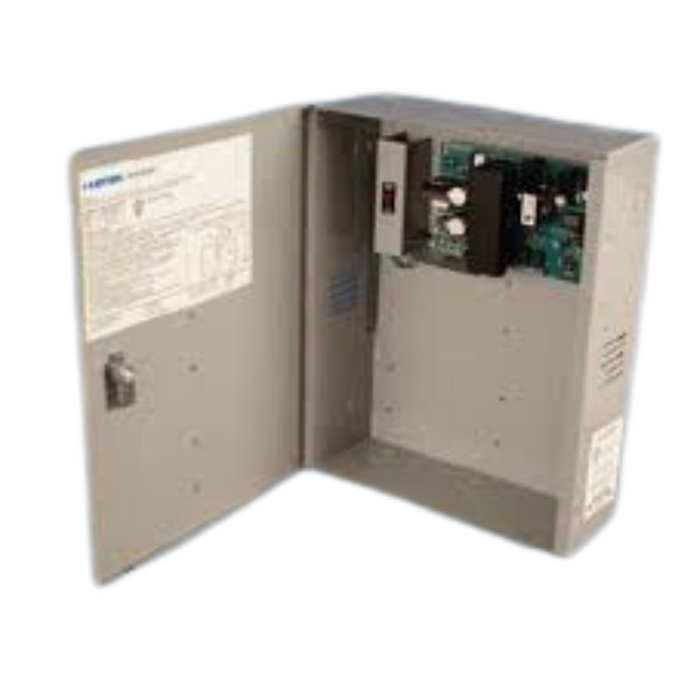

The Lenel LNL-AL400ULX is a high-performance, field-selectable 12 VDC or 24 VDC power supply and battery charger designed for OnGuard® access control systems. Housed in a gray LNL-CTX enclosure with a specialized mounting bracket, it can accommodate up to two Lenel access control modules (e.g., LNL-1320, LNL-1100). It converts 115 VAC input into a filtered and electronically regulated output. The unit features comprehensive supervision for AC failure and battery health, ensuring the integrity of the life safety system during power outages.



Key Features



  • Selectable Output: Field-selectable 12 VDC or 24 VDC operation via DIP switch.
  • Output Capacity:
  • 4 A continuous supply current @ 12 VDC.
  • 3 A continuous supply current @ 24 VDC.
  • Battery Protection: Includes a Low Battery Disconnect feature to prevent deep discharge and protect battery life.
  • Supervision Contacts: Dedicated Form C relays for AC Fail, Low Battery, and Battery Presence.
  • Zero Voltage Drop: Features seamless transition to battery backup with no voltage drop during AC loss.
  • Visual Diagnostics: On-board LEDs for AC input and DC output status.
  • Enclosure: Includes the LNL-CTX enclosure with a tamper switch and Lenel-keyed lock.
  • Compliance: UL 294 (Access Control), UL 1076 (Proprietary Burglar Alarm), and CSA Standard C22.2.
