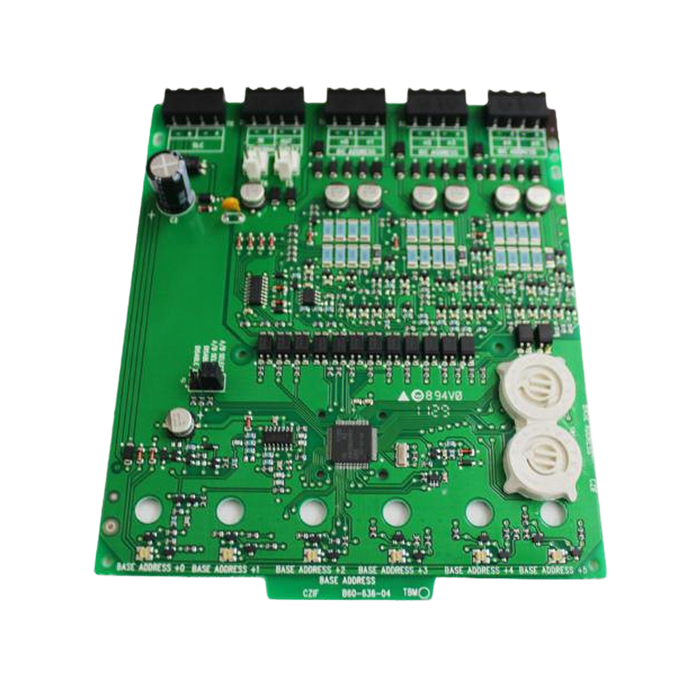

MMF-302-6 FIRE-LITE

Product Overview

The MMF-302-6 Six-Zone Interface Module from FIRE-LITE provides a bridge between an intelligent fire alarm system and conventional two-wire detection zones. Each module monitors up to six addressable two-wire detectors, transmitting their status (normal, open, or alarm) to the fire alarm control panel. Modules share a common SLC input and external supervisory supply, but otherwise operate independently. Addressing is managed via rotary switches, with the first module assigned manually and remaining modules auto-assigned. The MMF-302-6 includes panel-controlled bicolor LEDs and supports disabling unused addresses.

Key Features

• Interfaces six addressable Class B or three addressable Class A initiating device circuits
• Transmits status of two-wire detector zones to the FACP (normal, open, or alarm)
• Supervises detectors and external power connections
• Panel-controlled bicolor LED indicators
• Removable plug-in terminal blocks for ease of wiring and service
• Rotary address switches for straightforward module addressing
• Supports Class A (Style D) or Class B (Style B) wiring
• Unused addresses can be disabled to free up panel space
