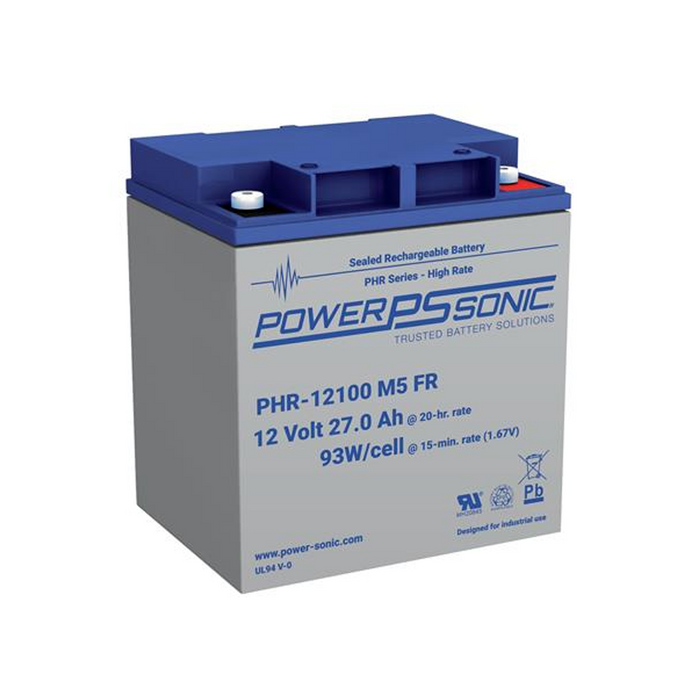

PHR-12100 M5 FR POWER SONIC

Product Overview

The Power Sonic PHR-12100 M5 FR is a 12V high-rate discharge, valve-regulated sealed lead-acid (VRLA) battery utilizing advanced Absorbent Glass Mat (AGM) technology. Purpose-built for mission-critical UPS systems and data centers, it delivers high-density power bursts with minimal internal resistance. It is rated at a nominal 27.0Ah capacity and outputs 93 Watts per cell over a short-duration 15-minute discharge window. Enclosed in a safety-certified UL94:V-0 flame-retardant case, this unit utilizes flush M5 female threaded insert terminals to provide seamless, high-vibration resistant electrical connectivity.

Key Features

• Flame-Retardant Case: Rugged ABS shell certified to strict UL94:V-0 standards to safely self-extinguish.
• High-Rate Output: Delivers a high-density power output of 93W/cell at a short 15-minute discharge rate.
• Dual Power Ratings: Formally rated at 27.0Ah (20-Hr rate) and 26.6Ah (10-Hr rate) for technical load profiling.
• M5 Threaded Inserts: Molded female copper terminals (T12 style) ensure high conductivity and tight joints.
• Dense Footprint: Carries a solid mass of 20.9 lbs (9.48 kg) inside a 6.46" x 4.92" x 6.89" chassis footprint.
• Maintenance-Free Build: Spill-proof VRLA architecture allows safe positioning without acid leak hazards.
• Transit Certified: Approved by D.O.T., I.A.T.A., and F.A.A. as non-spillable air and ground cargo.
