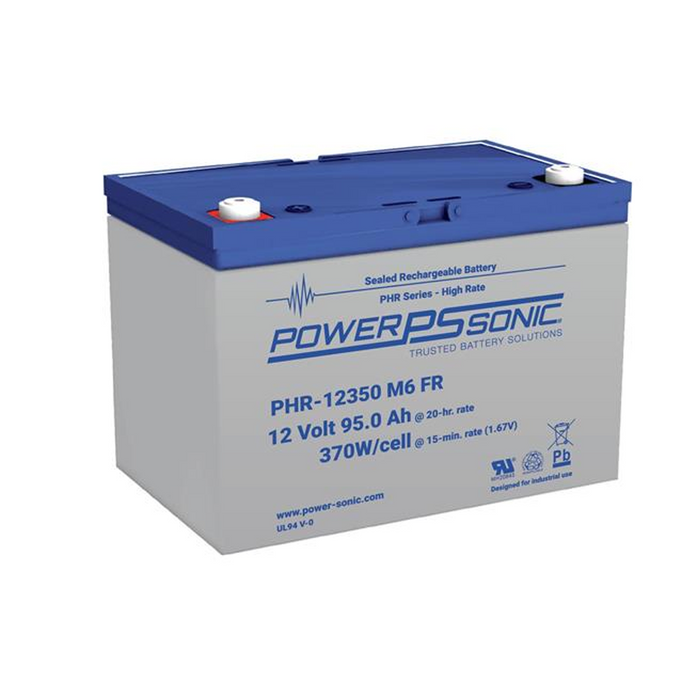

PHR-12350 M6 POWER SONIC

Product Overview

The Power Sonic PHR-12350 M6 is a 12V high-rate discharge, valve-regulated sealed lead-acid (VRLA) battery using advanced Absorbent Glass Mat (AGM) technology. Tailored for data center containment and large scale UPS frameworks, it provides excellent energy density and rapid power delivery. The battery outputs 370 Watts per cell over a critical 15-minute discharge window, operating with a nominal capacity of 95.0Ah (20-hour rate) or 92.5Ah (10-hour rate). Housed in a safety-certified UL94:V-0 flame-retardant case, this unit links via flush M6 female threaded copper inserts to safeguard high-current load transitions.

Key Features

• Flame-Retardant Shell: ABS case certified to UL94:V-0 fire codes to self-extinguish.
• High-Rate UPS Output: Projects 370W/cell across a short-duration 15-minute discharge profile.
• Dual Power Ratings: Rated at 95.0Ah (20-Hr rate) and 92.5Ah (10-Hr rate) for precision layout logs.
• M6 Threaded Inserts: Molded female copper terminals provide secure, low-resistance connections.
• High-Mass Frame: Packs 60.4 lbs (27.4 kg) of mass into a 12.0" x 6.61" x 8.27" footprint.
• Maintenance-Free Build: Spill-proof VRLA structure requires no chemical cell watering or refilling.
• Transit Certified: Rated as UN2800 non-spillable hardware for unrestricted global transport.
