SK-RELAYMON-2

Product Overview

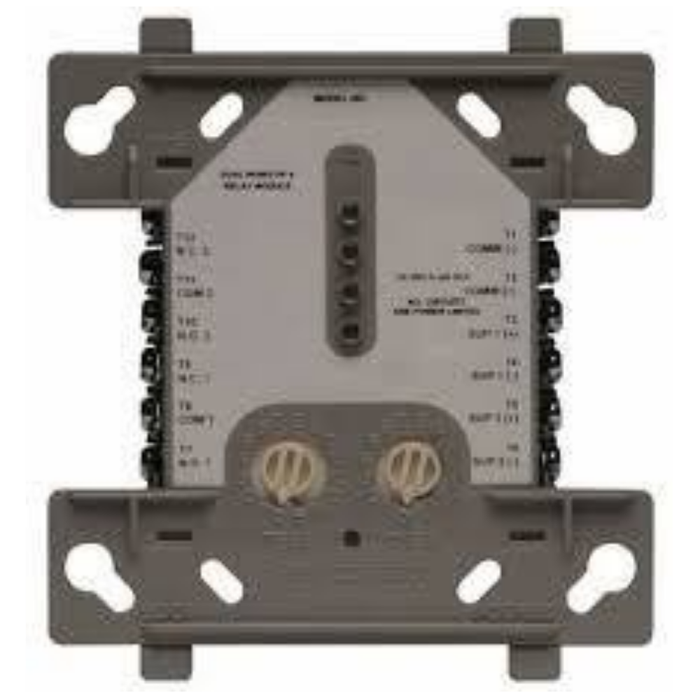

The Silent Knight SK-RELAYMON-2 is a versatile addressable combination module that integrates two relay outputs and two monitor inputs into a single device. Designed for use with Silent Knight fire alarm control panels, it provides a compact and efficient solution for applications requiring both control and monitoring.

Each monitor input interfaces the control panel with normally open, contact-type devices, using Class B supervised wiring. The two Form C relay outputs allow the panel to switch external circuits on command, with flexible programming options to map relay operation to specific zone conditions. Individual green LED indicators provide clear visual status for each relay and monitor input.

Key Features

• Combines two monitor inputs and two relay outputs in one module
• Monitors two circuits simultaneously, each with a unique address
• Two Form C relay contacts, each individually addressable
• Fully supervised Class B input wiring
• Flexible relay programming mapped to zone conditions
• Individual LED indicators for each monitor input and relay output
• Rotary address switches for fast and easy installation
• SEMS screws for simplified wiring
• Attractive ivory cover plate
• UL Listed
• CSFM Listed (7300-0559:0155)
