Product Overview

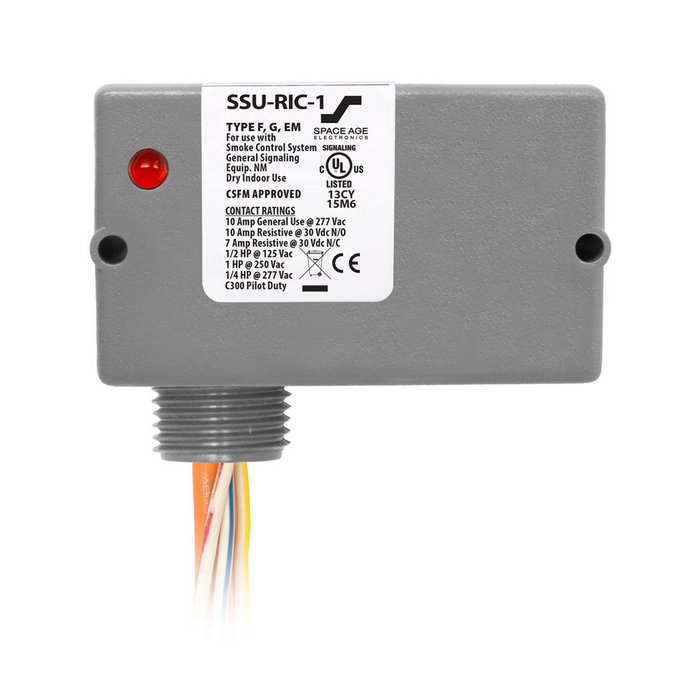

The SSU-RIC-1 is a multi-voltage SPDT (Form C) relay designed for versatile switching in fire alarm, security, and HVAC control applications. This relay is engineered for easy installation, featuring a self-clinching spud that allows it to mount directly through a standard 1/2-inch knockout on electrical junction boxes or control panels. It can be energized by one of three input voltages, providing a flexible solution for interfacing different system components. Each unit includes a red LED for visual status indication and 12-inch flying leads with wire nuts for fast, secure electrical connections.



Key Features



  • Multi-Voltage Input: Can be triggered by 24VDC, 24VAC, or 115VAC.
  • Contact Rating: Features a single SPDT (Form C) contact rated for 10A at 115VAC.
  • Knockout Mounting: Equipped with a self-clinching spud for mounting through a standard 1/2-inch knockout.
  • Visual Indicator: Integrated red LED illuminates when the relay coil is energized.
  • Installer-Friendly Wiring: Includes 12-inch flying leads and wire nuts for convenient field termination.
  • Compact Design: Small footprint (1.25" X 2.25" X 1.0") allows for installation inside or on the exterior of standard electrical boxes.
  • UL Listed: Certified for professional use in life safety and control systems.
