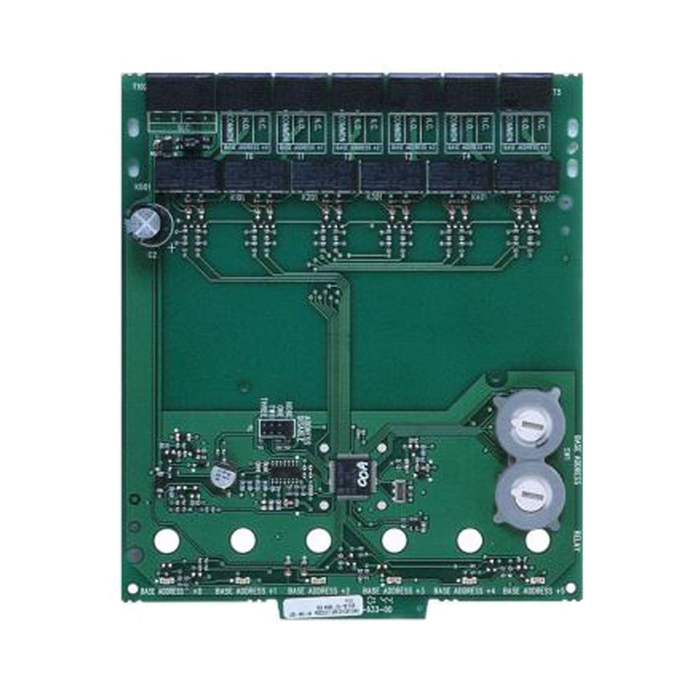

CRF-300-6 FIRE-LITE

Product Overview

The CRF-300-6 six-relay control module from FIRE-LITE provides intelligent alarm systems with six addressable Form-C relay outputs. The first module is addressed from 01 to 154, while the remaining five relays are automatically assigned to the next sequential addresses. The module includes provisions to disable up to three unused addresses for flexible system configuration.

Each address provides a single isolated set of dry relay contacts that can be wired for either normally open or normally closed operation, allowing the control panel to switch connected circuits on command. The controlled circuit is not supervised. Panel-controlled green LED indicators on each relay can be programmed to blink, latch on, or latch off, providing clear visual status indication.

Key Features

• Six addressable Form-C relay contacts
• Isolated dry contacts configurable as normally open or normally closed
• Removable plug-in terminal blocks for easy wiring
• Status LED indicators for each relay point
• Unused addresses may be disabled for flexible configuration
• Rotary address switches for simple setup
• Optional mounting of one or two modules in a BB-X2F cabinet
• Optional mounting of up to six modules on a CHS-6 chassis in a BB-2F cabinet
