FIRE-LITE MMF-301

Product Overview

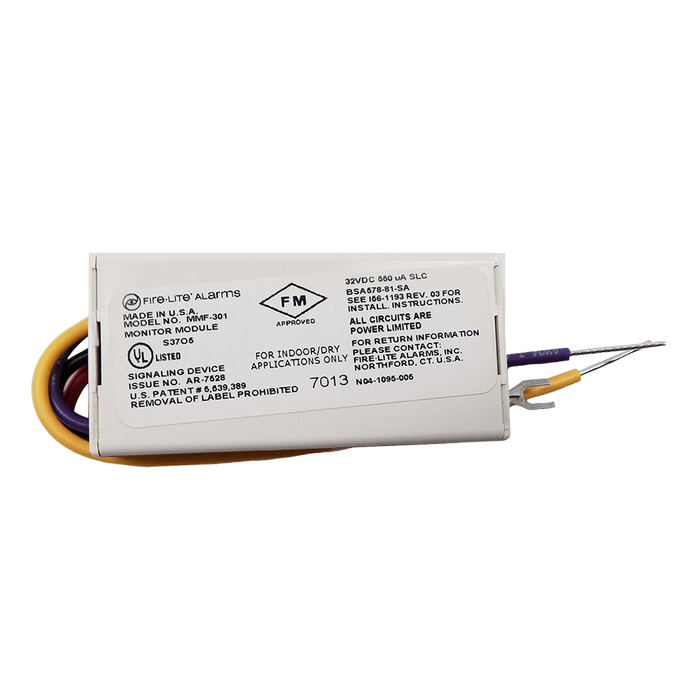

The MMF-301 Miniature Monitor Module from FIRE-LITE is a compact, addressable monitor module designed to supervise a Style B (Class B) circuit of dry-contact input devices. Measuring just 1.3" H × 2.75" W × 0.65" D, it can be conveniently installed in a standard single-gang box behind the device it monitors, making it ideal for space-constrained applications.

Key Features

• Operates on 15–32 VDC
• Supervises a Style B (Class B) dry-contact initiating device circuit
• Compact size fits in a single-gang box behind the monitored device
• Supervises IDC wiring and external power connections
• High noise immunity (EMF/RFI)
• SEMS screws with clamping plates for easy wiring
• Direct-dial entry for addresses: 01–159 on MS-9600 series panels, 01–99 on other compatible systems
• LED flashes during normal operation and latches steady during alarm
