9-30780-KID-ULF MODULASER
Warranty Terms and Conditions

9-30780-KID-ULF MODULASER

by MODULASER
Sold out
$1,576.78 - $1,576.78
$1,576.78
$1,576.78 - $1,576.78
$1,576.78
Availability :
Out of stock



Product Overview

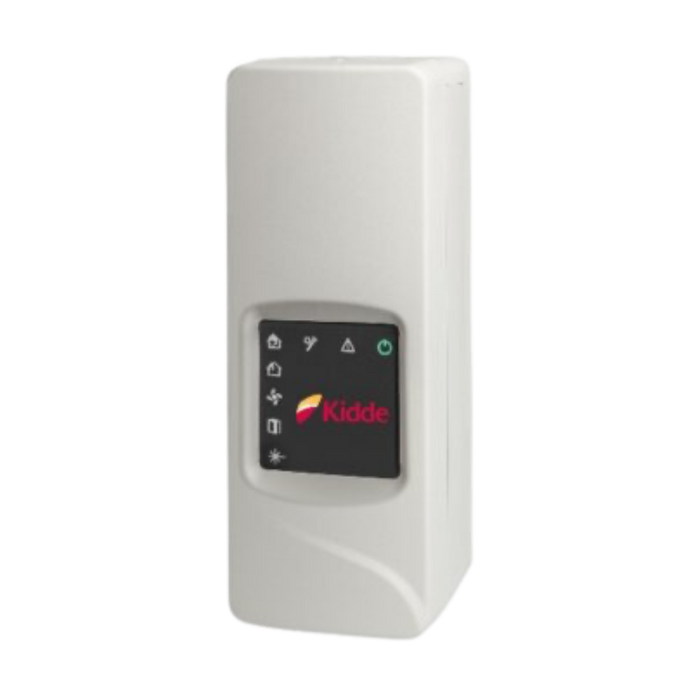

The ModuLaser 9-30780-KID-ULF is the Minimum Display Module for the scalable ModuLaser aspirating smoke detection system. This module serves as the central interface for a cluster of up to eight (8) detector modules, providing power distribution and RS-485 communication. Unlike the Standard Display, the "Minimum" model features a simplified interface consisting only of status LEDs (no screen), making it a cost-effective solution for remote or secondary locations. Because it lacks a local UI, configuration must be performed via a PC running Remote software or via a Command Display Module over the SenseNET network.







Key Features



  • Cluster Control: Supports and monitors up to eight (8) ModuLaser detector modules.
  • Simplified Interface: Local status indication via high-visibility LEDs (Power, Alarm, Pre-Alarm, Fault).
  • System Programming: Requires PC-based Remote software or Command Module for setup.
  • Outputs: Three (3) programmable voltage-free Form C relays (2A @ 30VDC).
  • Connectivity: Two (2) USB ports and RS-485 SenseNET/SenseNET+ support.
  • Electrical: 18–30 VDC operating range; 204mA current draw (at 24VDC).
  • Enclosure: IP40-rated for indoor use; includes a docking station backplane for easy module swapping.
  • Expansion: Supports optional APIC addressable interface cards for direct fire panel integration.
