0IFP-300BD FARENHYT

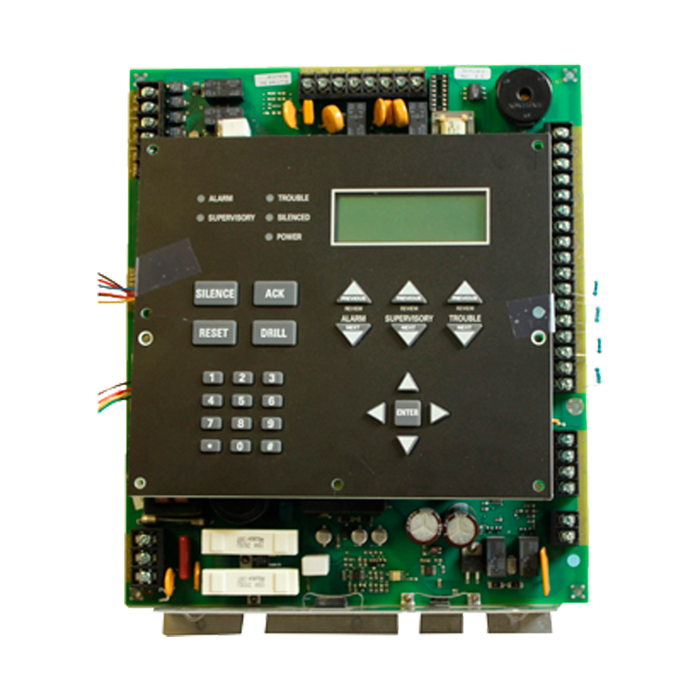

Restore full operational capability to aging Silent Knight IFP-300 and IFP-300B fire alarm control cabinets without replacing the entire enclosure. The IFP-300BD field-replaceable electronics assembly functions as a direct main board replacement, delivering immediate panel recovery and preserved system continuity for installations requiring circuit-level repair.

The board integrates a single Signaling Line Circuit (SLC) loop capable of supporting 159 IDP/SK detectors alongside 159 IDP/SK modules, or alternatively up to 127 SD devices. Total system handling reaches 300 addressable points using IDP/SK components or 254 points when utilizing SD equipment. Four onboard Flexput circuits provide adaptable deployment, switchable between Notification Appliance Circuit (NAC) outputs and auxiliary power feeds based on site specifications.

Installation and ongoing maintenance align with standard NFPA-compliant service procedures. The assembly retains native series operations including JumpStart auto programming, continuous drift compensation with targeted maintenance alerts, a 4×40 LCD interface, and built-in network communication routing. Existing wiring harnesses and physical mounting points remain fully compatible, removing the need for custom fabrication or panel swapping.

This replacement electronics module reduces downtime and material waste by reviving defective control units in situ. Facility managers and fire alarm contractors can reactivate dormant panels, recover lost zoning data, and maintain compliance without interrupting broader building protection networks.
