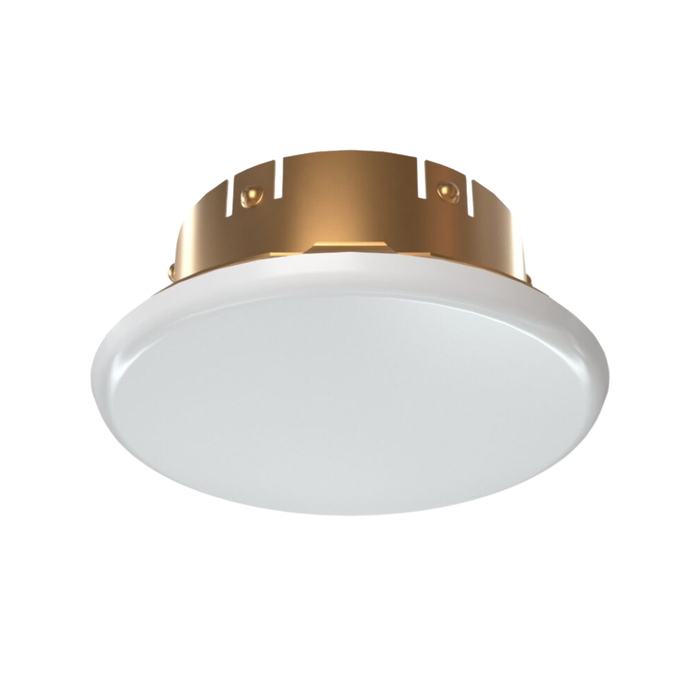

23447MA/W VIKING

Product Overview

The Viking 23447MA/W is a flat, push-on cover plate assembly specifically designed for use with Viking Mirage VK461, VK462, VK463, VK464, and VK465 concealed pendent sprinklers. This model features a 135°F (57°C) temperature rating and a White finish. The push-on design allows for a "semi-permanent" installation that can compensate for ceiling variations, providing up to 1/2" (13mm) of vertical adjustment. It is engineered with a heat-sensitive solder link that melts at the rated temperature, allowing the plate to drop away and the sprinkler deflector to extend into the room for effective fire suppression.

Key Features

• Compatibility: Exclusively for use with Viking Mirage Concealed Pendent Sprinklers (SINs VK461-VK465).
• Temperature Rating: 135°F (57°C) must be used with a sprinkler head rated at 155°F (68°C) or higher.
• Vertical Adjustment: Up to 1/2" (12.7mm) to accommodate varying ceiling thicknesses.
• Push-On Installation: Features a threadless, push-on design for faster installation compared to thread-on models.
• Finish: Polyester White (RAL 9010) for clean architectural integration.
• Safety Feature: The plate is designed to fall away during a fire to ensure no interference with the sprinkler spray pattern.
• Dimensions: 2-3/4" (70mm) outer diameter.
• Model Specific: MA/W indicates the Push-On style and White finish.
