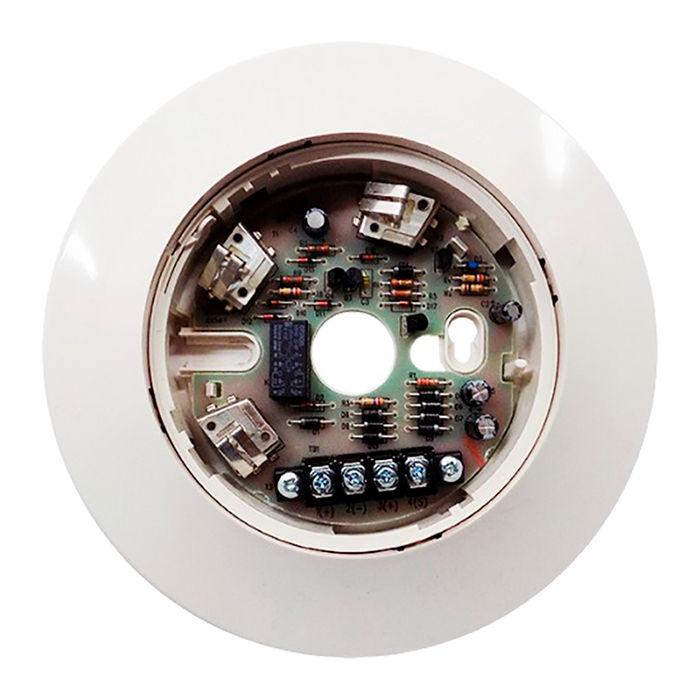

SYSTEM SENSOR B224BI
Warranty Terms and Conditions

SYSTEM SENSOR B224BI

by SYSTEM SENSOR
DISCONTINUED
Save $6.95 Save $6.95
$69.78
$69.78 - $69.78
$69.78
$62.83
$62.83 - $62.83
$62.83
Availability :
22 in stock, ready to be shipped

dataSheet

Product Overview

 System Sensor Select Series detector bases include standard 4" and 6" models and specialty bases: relay, isolator, sounder, and low-frequency sounder. Standard plug-in bases feature screw terminals for power (+/−) and remote annunciator connections. The 4" base is compact; the 6" base fits larger junction boxes.

Specialty bases use a separate mounting plate for pre-wiring, faster installation, and improved appearance.

Relay bases (B224RB) provide a Form C relay for auxiliary functions like door release and elevator recall, with selectable short- (60–100 ms) or long-delay (6–10 s).

Isolator bases (B224BI) maintain SLC operation during short circuits by isolating faults and automatically restoring the loop.

Sounder and low-frequency bases meet UL 268/464 and NFPA 72 requirements. Low-frequency bases (520 Hz ±10%) effectively wake sleeping occupants, including those with hearing loss.

Key Features

  • Plug-in base design allows fast and secure detector installation
  • Multiple base configurations available to meet a wide range of application requirements
  • Standard white finish with optional ivory and black color options
  • Mechanical locking feature helps prevent unauthorized removal of the detector head
