VG4-A-PSU0 BOSCH

Product Overview

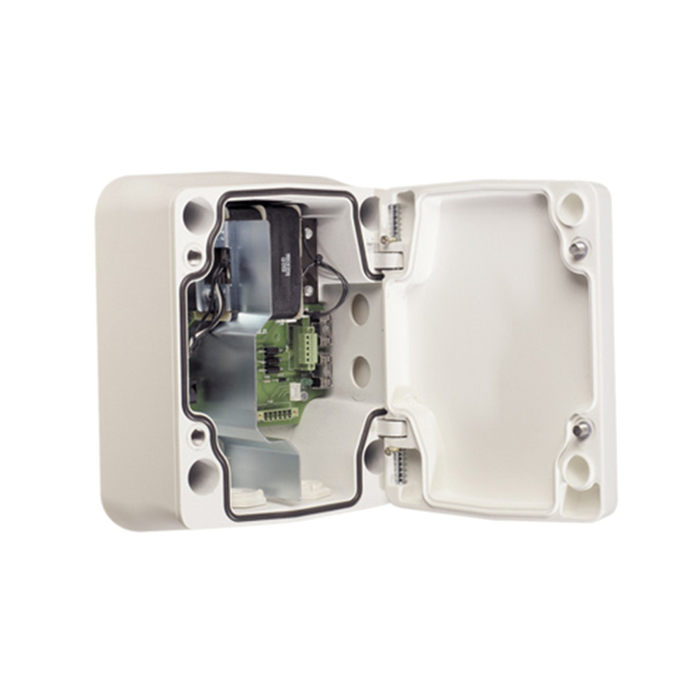

The Bosch VG4-A-PSU0 is a high-capacity, 100W (96VA) power supply unit designed for the AutoDome PTZ camera series. Unlike base enclosure models, the PSU0 includes a factory-installed 120VAC to 24VAC transformer. This unit serves as the primary wiring interface for the camera, providing dedicated terminals for 24VAC power, Biphase control, RS-232/485 data, and Coaxial video. Housed in a ruggedized, IP66-rated cast aluminum enclosure with a white finish, it is engineered to survive extreme outdoor conditions while providing the high-amperage current necessary to drive the camera's motors and environmental heaters.

Key Features

• Integrated Transformer: Converts 120VAC input to 24VAC output (100W / 96VA capacity).
• Interface Hub: Provides internal termination points for power, telemetry/data, and video signals.
• Environmental Protection: IP66 and NEMA 4X rated for protection against rain, dust, and corrosion.
• Impact Resistance: IK08 rated aluminum housing for protection against vandalism.
• Compatibility: Primarily used for AutoDome 600/700 series Analog and compatible AutoDome IP 4000/5000/7000 series (24VAC models).
• Safety: Features internal fusing to protect the camera from electrical surges or shorts.
• Mounting: Designed to be mounted to a wall or used with a pole/corner mount adapter (NDA-U-PMAL/NDA-U-CMT)
