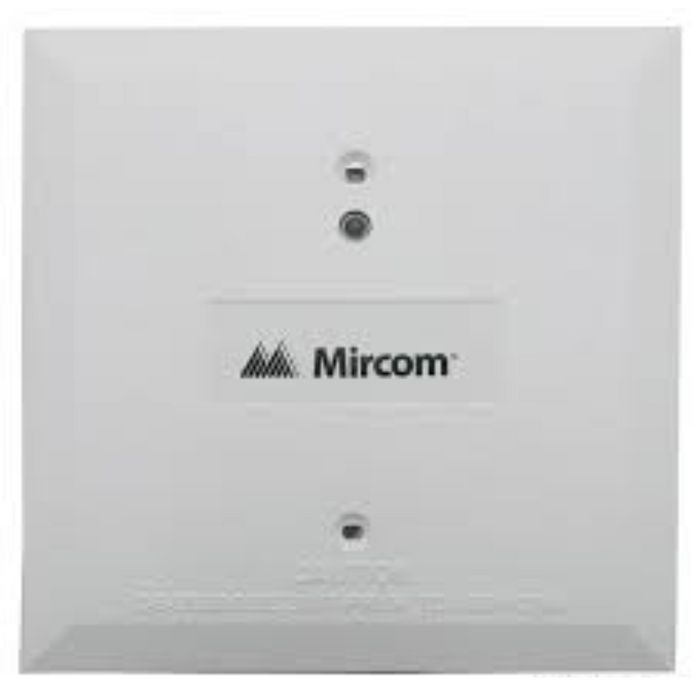

MIX-M500SAP MIRCOM

The MIX-M500SAP Supervised Control Module is designed for intelligent two-wire systems and allows a compatible control panel to switch an external power supply such as a DC supply or audio amplifier (up to 80 VRMS), to notification appliances. It supervises the wiring to the connected devices and reports their status to the panel as NORMAL, OPEN, or SHORT CIRCUIT. Each module’s address is set using built-in rotary decade switches, and a panel-controlled LED indicates module status.

Key Features

• Supervises wiring to connected loads and reports NORMAL, OPEN, or SHORT CIRCUIT
• Supports switching of external DC power supplies or audio amplifiers (up to 80 VRMS)
• Two pairs of output termination points for fault-tolerant wiring
• Addressable via built-in rotary decade switches
• Panel-controlled LED for status indication
• Compatible with intelligent two-wire systems
