MMF-301 FIRE-LITE
Warranty Terms and Conditions

MMF-301 FIRE-LITE

by FIRE-LITE
Sold out
$54.73 - $54.73
$54.73
$54.73 - $54.73
$54.73
Availability :
Out of stock

Product Overview

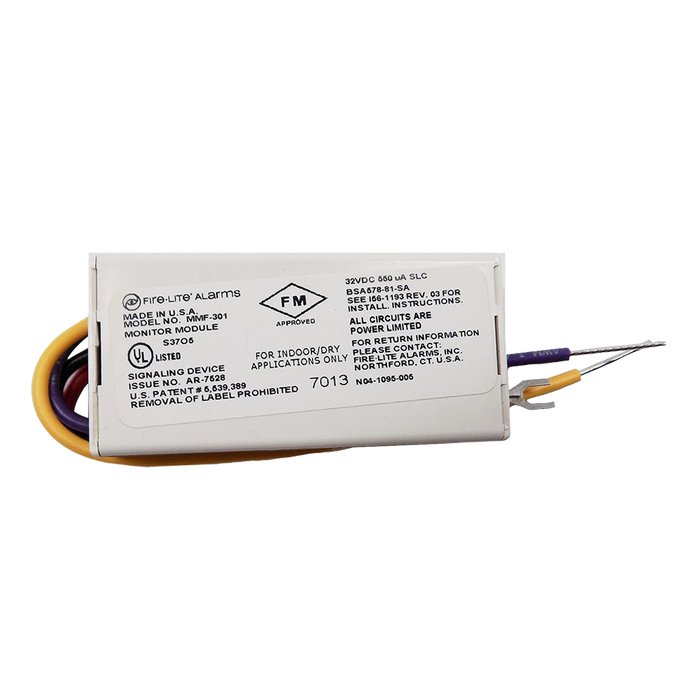

The MMF-301 Miniature Monitor Module from FIRE-LITE is a compact, addressable monitor module designed to supervise a Style B (Class B) circuit of dry-contact input devices. Measuring just 1.3" H × 2.75" W × 0.65" D, it can be conveniently installed in a standard single-gang box behind the device it monitors, making it ideal for space-constrained applications.

Key Features

  • Operates on 15–32 VDC
  • Supervises a Style B (Class B) dry-contact initiating device circuit
  • Compact size fits in a single-gang box behind the monitored device
  • Supervises IDC wiring and external power connections
  • High noise immunity (EMF/RFI)
  • SEMS screws with clamping plates for easy wiring
  • Direct-dial entry for addresses: 01–159 on MS-9600 series panels, 01–99 on other compatible systems
  • LED flashes during normal operation and latches steady during alarm
