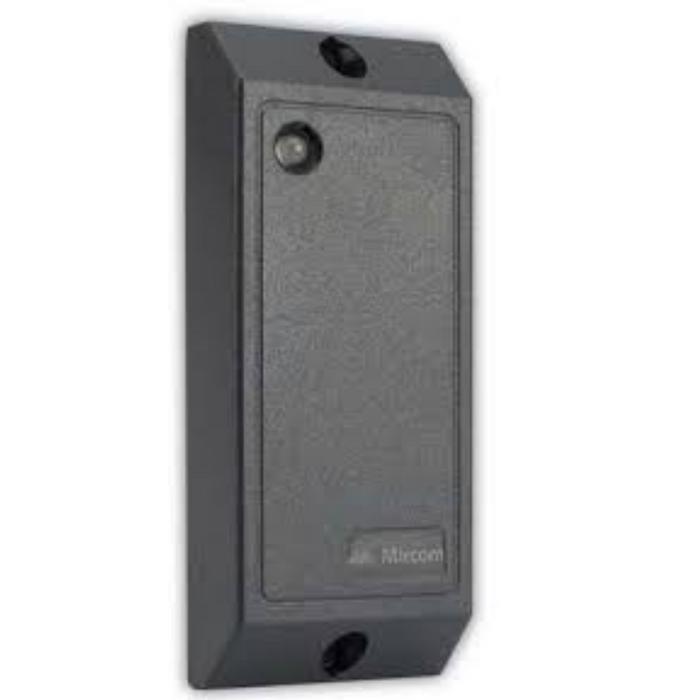

SR-2400MI-GR-MP MIRCOM

Product Overview

The SR-2400MI-GR-MP is a high-performance, multi-protocol proximity reader designed for Mircom’s TX3 Series access control systems. Operating at 125 kHz, this reader features a slim mullion-mount design that fits perfectly on standard 1 ¾” metal door frames or window mullions. It includes built-in metal compensation technology to ensure maximum read range even when mounted on metallic surfaces, making it a versatile choice for both indoor and outdoor security applications.

Key Features

• Multi-Protocol Support: Engineered to read multiple 125 kHz proximity protocols, providing broad compatibility with various credentials.
• Mullion Mount Design: Slim profile (4.5" x 1.8" x 0.7") ideal for narrow installations on door or window frames.
• Weather-Resistant: Electronics are encapsulated in a UL-approved epoxy resin potting compound for protection against harsh environmental conditions.
• Wiegand & RS-232 Output: Supports standard Wiegand interface (up to 500 feet) and simultaneous RS-232 serial data output.
• Exceptional Read Range: Delivers a read range of up to 5.5 inches (14 cm) depending on the credential and voltage (5 to 12 VDC).
• Visual & Audible Feedback: Features a built-in three-color LED (Red, Amber, Green) and a 4 kHz beeper for user interaction and status signaling.
