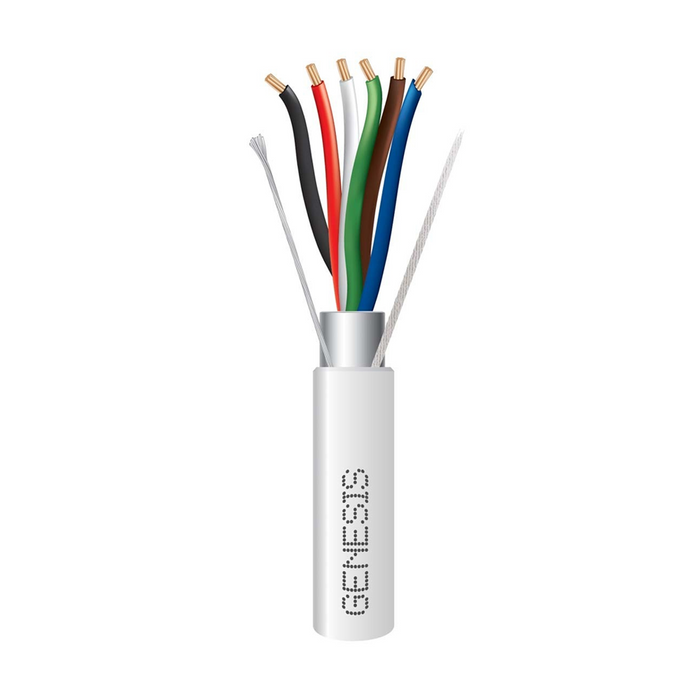

22161001 GENESIS

Product Overview

The Genesis 22161001 is a high-performance 18 AWG, 6-conductor stranded cable designed for demanding security, access control, and signal transmission systems. Featuring an overall foil shield, this cable is engineered to block electrical noise and electromagnetic interference (EMI), ensuring the integrity of critical data and multi-device control signals. The 18-gauge construction provides superior conductivity and allows for longer cable runs with minimal voltage drop compared to smaller gauges. Rated CMR (Riser) and FT4, it is safe for vertical installations between floors in residential and commercial buildings. Packaged on a durable 1000-foot reel, it features a white PVC jacket with countdown length markings and a rip cord to simplify cable management and installation.

Key Features

• 18 AWG 6-conductor stranded cable
• Overall foil shield to minimize electrical noise and interference
• Rated CMR (Riser) for vertical installations
• Supplied on a 1000-foot (305m) reel
• White PVC jacket for clean aesthetics
• Stranded bare copper conductors for flexibility and conductivity
• Countdown length markings and rip cord included
• Sunlight resistant (UV) rated
• Rated for 300 Volts operation
• REACH and RoHS compliant
