3012E MIRCOM

Product Overview

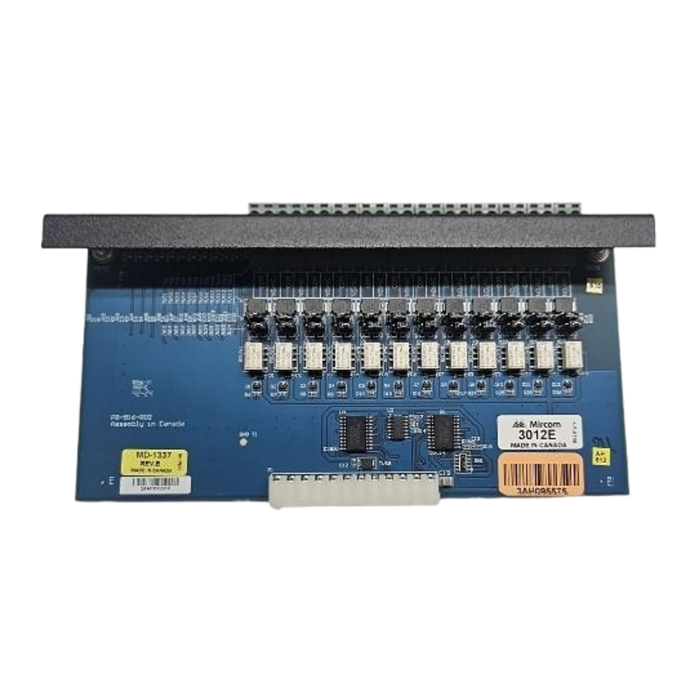

The 3012E Elevator Restriction Relay Card supports elevator access control for up to 12 floors and mounts within the TX3-ER-8-B Master Elevator Restriction Relay Cabinet. Designed for flexible configuration, each relay can be individually set to meet specific system requirements. Up to eight 3012E cards can be installed in a single cabinet, providing a total of 96 elevator restriction relays.

Key Features

• Supports 12 floors per relay card
• Mounts in TX3-ER-8-B Master Elevator Restriction Relay Cabinet
• 12 Form C relay contacts per card
• Each relay configurable as Normally Open or Normally Closed
• Individual relay configuration for AC or DC operation
• Up to 8 cards per cabinet (96 total relays)
