90215A-801-04-L HYPERSPIKE

Product Overview

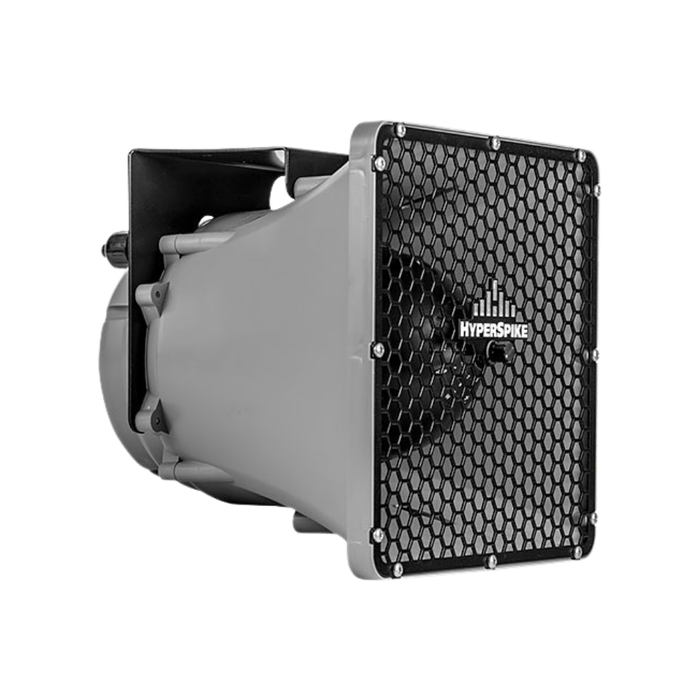

The HyperSpike 90215A-801-04-L (TCPA-10) is a high-output, medium-range distributed audio speaker designed to deliver exceptionally clear voice commands and authoritative tones in high-ambient noise environments. This specific model features a Gray finish and is CID2 (Class I Division 2) certified, making it suitable for hazardous locations where flammable gases or vapors may exist. The TCPA-10 is engineered for both indoor and outdoor mass notification, providing an incredible 139 dB Max SPL and an industry-leading Speech Transmission Index (STI) for superior intelligibility. It includes a built-in transformer with five field-selectable power taps and an integrated DC blocking capacitor for fire alarm circuit supervision.

Key Features

• Acoustic Performance: Delivers up to 139 dB Max SPL @ 1m; extremely efficient, producing 129 dB SPL peak with only 4W of power.
• Intelligibility: STI PA rating of "Excellent," ensuring voice messages are understood even in loud industrial settings.
• Hazardous Location Rated: UL 1480 Listed and CID2 Certified (Groups A, B, C, and D) for hazardous environments.
• Voltage Compatibility: Supports 25V, 70V, and 100V RMS distributed audio systems.
• Selectable Power Taps: * 100V: 45W, 32W, 24W, 16W, 8W
• 70V: 24W, 16W, 12W, 8W, 4W
• 25V: 3W, 2W, 1.5W, 1W, 0.5W
• Construction: Rugged 5VA-rated, UV-resistant ABS plastic with a NEMA 3R environmental rating.
• Supervision: Includes an internal capacitor for standard DC line supervision by fire alarm control panels.
