AL125ULE ALTRONIX

Product Overview

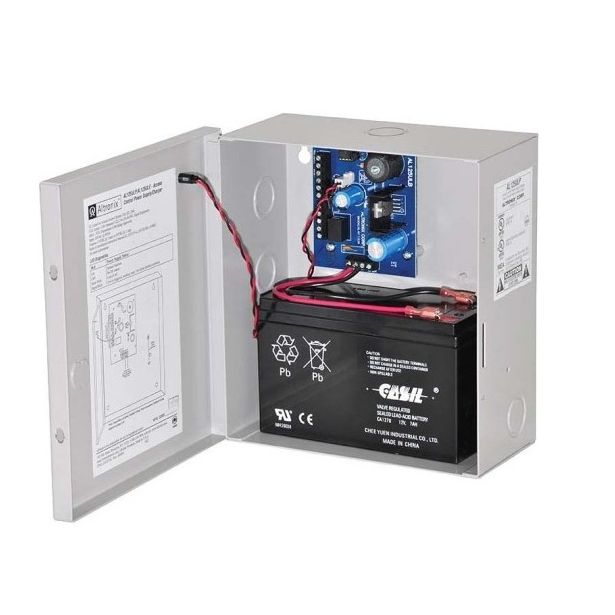

The Altronix AL125ULE is a compact power supply/charger kit housed in a BC100 enclosure, designed for UL 294 Access Control applications. It converts a 24VAC, 40VA input from an external transformer into a selectable 12VDC or 24VDC power-limited output. It provides 1A at 12VDC or 0.5A at 24VDC of continuous supply current. The unit includes a built-in battery charger with instantaneous backup transition and a specialized FACP interface for supervised fire alarm disconnect.

Key Features

• Selectable 12VDC @ 1A or 24VDC @ 0.5A power-limited output
• Requires external 24VAC/40VA transformer
• Integrated FACP interface with supervised Fire Alarm Disconnect
• Built-in charger for sealed lead acid or gel batteries
• Short circuit and thermal overload protection
• AC fail supervision (Form C contact)
• Filtered and electronically regulated output
