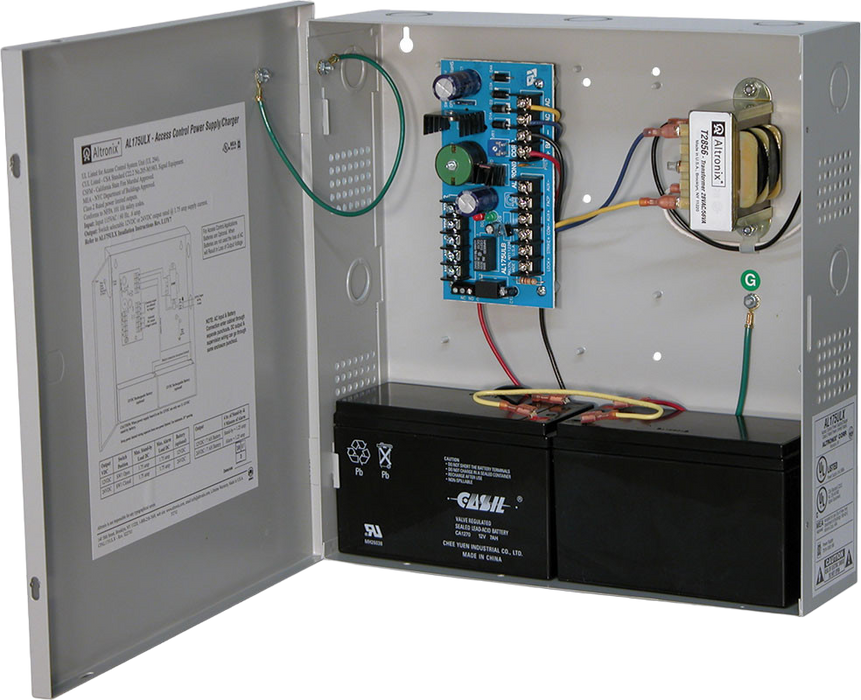

ALTRONIX AL175ULX

Product Overview

The Altronix AL175ULX is an advanced switching access control power supply charger, designed for reliable and efficient operation. It converts 115VAC, 60Hz input into two individually protected Class 2 power-limited outputs, selectable at 12VDC or 24VDC. With 1.75A continuous output, it supports both Fail-Safe/Fail-Secure lock operation and auxiliary power. Housed in a compact BC300 enclosure and UL listed, the AL175ULX ensures safe, dependable performance for a wide range of access control applications.

Key Features

• Two (2) Class 2 rated outputs: Fail-Safe/Fail-Secure lock output (switched) and auxiliary power output (unswitched)
• 12VDC or 24VDC selectable output
• 1.75A continuous maximum current
• Individually protected outputs with short circuit and thermal overload protection
• Instantaneous failover to sealed lead acid or gel batteries upon AC loss
• Supervised latching or non-latching Fire Alarm disconnect
• AC failure Form “C” contacts
• UL listed
