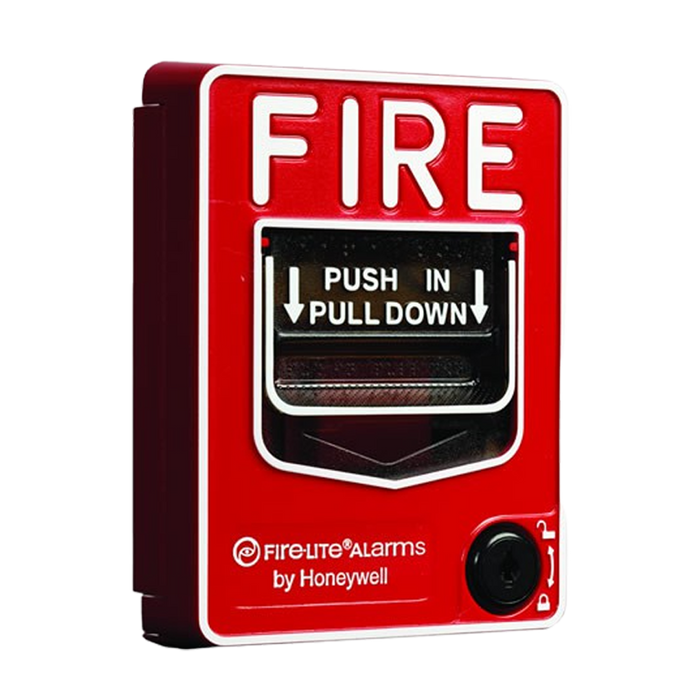

BG-12LX FIRE-LITE

Product Overview

The Fire-Lite BG-12LX is a dual-action, addressable manual pull station designed for use with Fire-Lite addressable fire alarm control panels. Its built-in addressable interface allows the control panel to display the exact location of an activated station, helping emergency personnel respond faster. The BG-12LX combines durable construction, modern aesthetics, and easy installation with accessible, code-compliant operation.

Key Features

• Dual-action operation for added protection against false alarms
• Built-in bicolor LED: flashes in normal operation and latches red in alarm
• Key reset with handle that latches down and displays “ACTIVATED”
• Inspection and address setting without triggering an alarm
• Captive screw terminals for easy SLC loop wiring
• Surface or semi-flush mounting options
• ADA-compliant operation with 5 lb. maximum activation force
• Highly visible design with attractive textured finish
