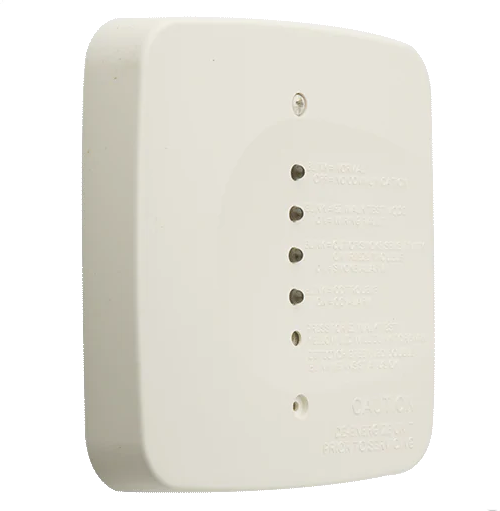

COSMOD2W SYSTEM SENSOR

Product Overview

 The i4 Interface Module connects up to 12 i4 Series or compatible i3 Series detectors to a fire alarm control panel using only 2 to 3 zones: smoke, CO, and optional trouble. All connected detectors are interconnected, so when one alarms, all sound, providing enhanced warning. The module supports Temp 3 signaling for smoke and Temp 4 for CO events, mounts to a 4-11/16" square back box, and includes LED status indicators for alarms, faults, maintenance, and end-of-life.

Key Features

• Integrates up to 12 compatible detectors
• Compatible with COSMO-2W and 2WTA-B detectors
• Sends distinct smoke and CO signals to the panel
• Interconnects all device sounders
• No RSS-MOD required
• Optional trigger inputs for multiple modules
