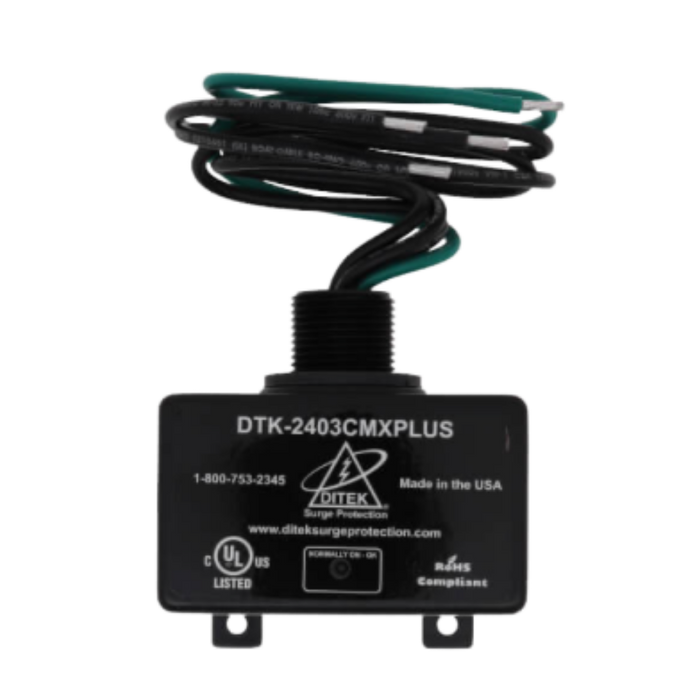

DTK-2403CMXPLUS DITEK

Product Overview

The DITEK DTK-2403CMXPLUS is a high-capacity Type 1 Surge Protective Device (SPD) designed for 240VAC Three-Phase Delta systems (3-Wire + Ground). Part of the professional-grade CMXPLUS series, it provides $100,000$ Amps ($100kA$) of surge current capacity per phase. This unit is specifically engineered for service entrance or branch panel installation in harsh industrial environments. Its NEMA 4X waterproof enclosure allows for indoor or outdoor mounting, while its parallel-mount design ensures that it does not limit the load current of the protected equipment.

Key Features

• Surge Capacity: $100,000$ Amps per phase ($100kA$) for robust protection against lightning and power surges.
• System Voltage: 240VAC Three-Phase Delta (3-wire + Ground).
• UL 1449 Type 1 SPD: Can be installed on the line side or load side of the main service disconnect.
• Voltage Protection Rating (VPR): $1000V$ (L-G) and $1000V$ (L-L).
• Durability: NEMA 4X (IP66) enclosure made of high-impact polycarbonate; UV resistant.
• Diagnostics: LED status indicator provides immediate local verification of protection status.
• Compliance: UL 1449 4th Edition, UL 96A compliant for lightning protection, and ANSI/IEEE C62.41 compliant.
• Standard Mount: Includes a 3/4" NPT threaded hub for easy installation to electrical panels.
