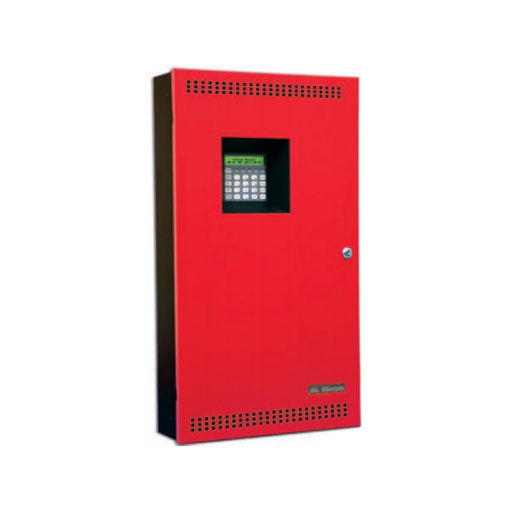

FA-301-12DDR MIRCOM

Product Overview

The FA-301-12DDR is a twelve-zone conventional fire alarm control unit designed for reliable and flexible system installation. It features twelve Class “B” (Style “B”) initiating circuits and four Class “B” (Style “Y”) notification circuits rated at 1.7 Amps maximum (total 5 Amps). Optional Class A converter modules are available: the ICAC-306 for six initiating circuits (Style “D”) and the OCAC-304 for four indicating circuits (Style “Z”). The unit includes a built-in UDACT/Digital Communicator and supports up to 12 AH batteries. For versatile installation, the panel can be semi-flush mounted using the optional FA-UNIV-TRB trim ring.

Key Features

• Twelve Class “B” (Style “B”) initiating circuits
• Four Class “B” (Style “Y”) notification circuits, 1.7A max (total 5A)
• Optional ICAC-306 Six Initiating Circuit Class A Converter Module (Style “D”)
• Optional OCAC-304 Four Indicating Circuit Class A Converter Module (Style “Z”)
• Built-in UDACT/Digital Communicator
• Supports up to 12 AH batteries
• Semi-flush mountable with optional FA-UNIV-TRB trim ring
