SOC-E-IS HOCHIKI

Product Overview

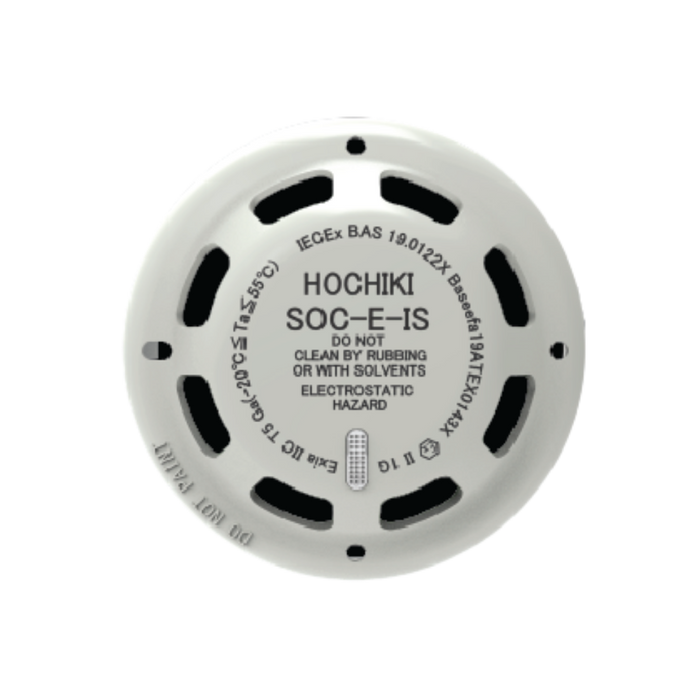

The HOCHIKI SOC-E-IS Photoelectric Smoke Detector is a high-performance conventional smoke detector designed for reliable detection in a wide range of applications. Utilizing Hochiki’s advanced photoelectric chamberand ASWV (Automatic Sensitivity Window Verification) drift compensation, it maintains optimal sensitivity while minimizing false alarms. The smoke chamber is removable for easy cleaning or replacement and features a unique baffle design that prevents ambient light interference. Fully compatible with existing conventional systems, the SOC-E-IS is ideal for commercial and industrial installations.

Key Features

• High-performance, removable smoke chamber
• Automatic Sensitivity Window Verification (ASWV) – drift compensation
• Wide operating voltage range: 9.5 – 30 VDC
• Low quiescent current: 35 µA; alarm current: 40 mA
• ATEX certified: Ex ia IIC T5 Ga (-20°C to +55°C)
• LPCB and VdS approved
• IP42 rated
• Available in Ivory or White (SOC-E-IS / SOC-E-IS(WHT))
• Easy maintenance with removable smoke chamber
• Operating temperature: -30°C to +60°C; Maximum humidity: 95% RH non-condensing
• Dimensions: Ø 100 × H 48 mm; Weight: 106 g
