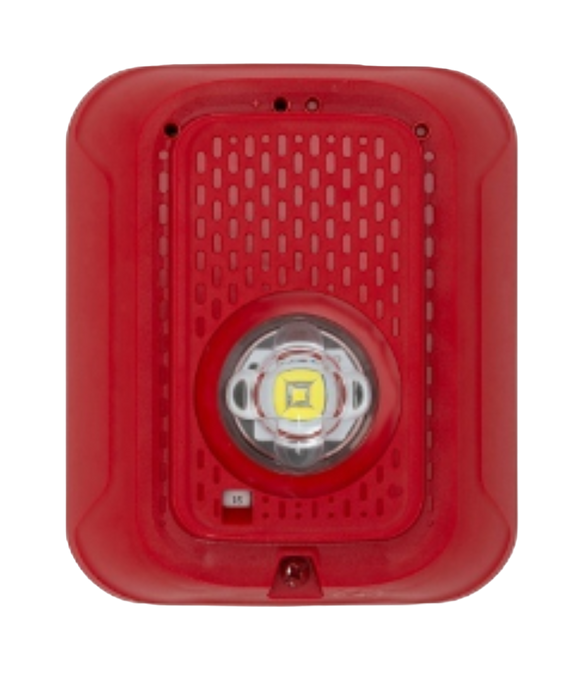

SRLED-P SYSTEM SENSOR

Product Overview

 The System Sensor L-Series LED strobes are rich with features that increase application versatility, simplify installation, and maximize efficiency with lower current draw and modern aesthetics. LED lighting technology provides significantly lower current draw compared to older Xenon bulbs across the full candela range. This improves design flexibility for notification appliance circuits (NACs) while reducing power supply requirements, allowing for simpler and lower-cost installations.

All devices feature plug-in designs with minimal intrusion into the backbox, enabling fast and foolproof installation while virtually eliminating costly and time-consuming ground faults. A universal mounting plate with an onboard shorting spring allows installers to test wiring continuity before the device is installed.

Key Features

• LED technology provides lower current draw
• Digital Voltage Meter (DVM) diagnostic test points for Horn Strobes
• Common aesthetics across the L-Series platform
• Standard and compact sizes
• Tamper-resistant construction
• 24VDC operation only
• Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, 185
• Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, 177
