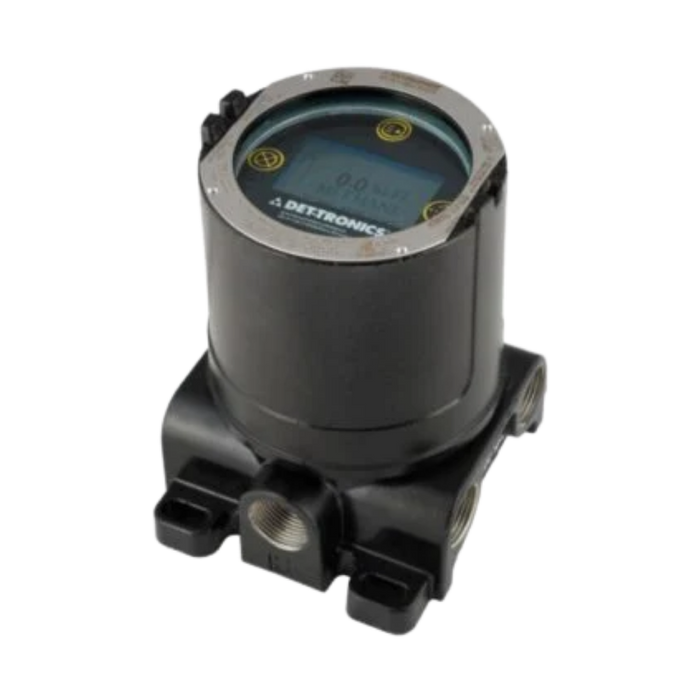

UD10S5N25T2C DET-TRONICS

Product Overview

The Det-Tronics UD10S5N25T2C is a high-performance Universal Display unit designed for hazardous industrial environments. This specific SKU features a 316 Stainless Steel explosion-proof housing, providing maximum corrosion resistance for offshore or harsh chemical applications. It acts as a localized controller and interface for a wide variety of Det-Tronics gas sensors (such as the PIRECL or GT3000) and linear 4-20 mA devices. The unit provides a backlit LCD for real-time gas concentration readings and allows for non-intrusive calibration via an external magnetic tool, ensuring the enclosure remains sealed in explosive atmospheres.

Key Features

• Enclosure Material: 316 Stainless Steel (designated by "S" in SKU).
• Entry Threads: M25 metric conduit entries (designated by "5" in SKU).
• Outputs: Linear 4-20 mA with HART communication, three (3) 5-amp Relays (Alarm, Warning, Fault), and Modbus RS485.
• Display: Large, multi-language backlit LCD showing gas type, concentration, and fault codes.
• Non-Intrusive Interface: Four internal magnetic switches allow menu navigation and calibration without opening the housing.
• Operating Voltage: 24 VDC nominal.
• Hazardous Area Ratings: FM/CSA/ATEX/IECEx approved for Class I, Div 1 & 2, Groups B, C, and D; IP66 ingress protection.
• Data Logging: Features an event log to track alarms and calibration history.
