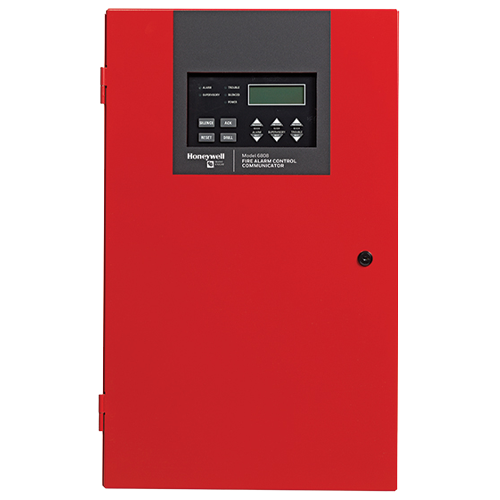

SILENT KNIGHT 006808

Product Overview

The 006808 Silent Knight Addressable Fire Alarm Control Panel supports up to 198 points and offers advanced capabilities such as connected panel networking, enhanced communication options, and wireless detection support. Designed for flexibility, the panel allows Class B (Style 4) and Class A (Style 6) wiring for SLC, SBUS, and Flexput circuits, making it adaptable to a wide range of system layouts and installation environments.

It enables up to 17 networked panels to be linked using copper or fiber-optic pathways, both of which can be mixed within the same network, to provide unified system visibility. With built-in dual-path communication (IP and POTS), USB programming, and field-upgradeable firmware, the 006808 delivers efficient installation, reliable performance, and long-term system scalability.

Key Features

• Connect up to 17 compatible panels for single-point system monitoring
• Copper and fiber-optic connectivity options can be combined in one network
• Built-in dual-path IP + POTS communication
• Integrated USB port for fast programming
• SWIFT® wireless detection support for difficult-to-wire installations
• Field-upgradeable firmware
• Supports up to 12 remote annunciators
• Large, easy-to-use keypad with 4×20 (80-character) display
• Includes JumpStart HFSS programming software + SKST selection tool
• Four NAC circuits with 6A power supply
• Supports Class B (Style 4) and Class A (Style 6) for SLC, SBUS, and Flexput
• UL Listed: S2766
• CSFM: 7165-0559:0502
• FDNY: COA# 6246
• FM Approved
