ANN-LED FIRE-LITE

Product Overview

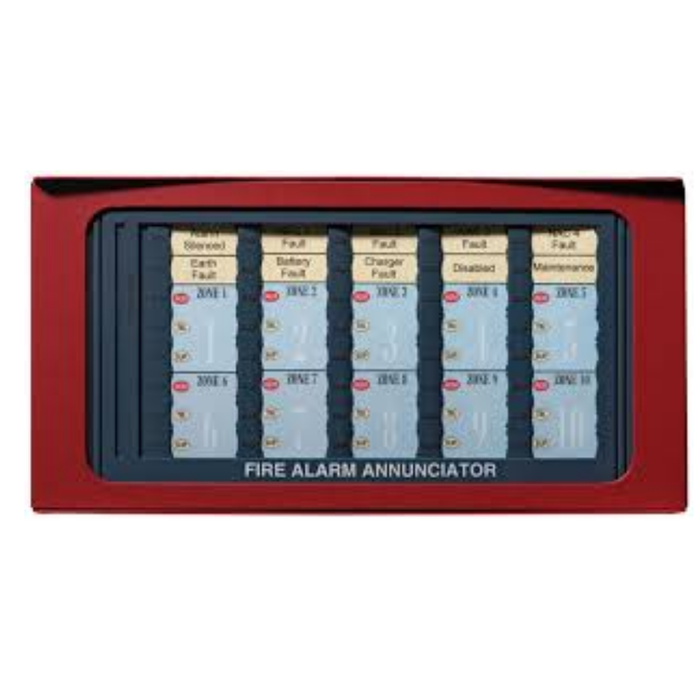

The ANN-LED annunciator module from FIRE-LITE provides clear LED indication of general system faults and zone/point status when connected to a compatible Fire Alarm Control Panel (FACP). It delivers alarm (red), trouble (yellow), and supervisory (yellow) annunciation for up to ten input zones or addressable points. The ANNRLED variant supports red alarm LEDs only and can indicate up to 30 addressable points. The ANN-LED is supplied as standard with certain Canadian FACPs to meet ULC requirements. Communication between the ANN-LED and the panel occurs over a two-wire ANN-Bus serial interface, with an additional two wires supplying 24 VDC power. A single four-conductor unshielded cable can carry both power and data. Each FACP supports up to eight ANN-Bus devices.

Key Features

• Connects directly to the ANN-Bus terminal with minimal programming required
• Three status LEDs per zone: Alarm, Trouble, and Supervisory
• Remote mounting capability up to 6,000 ft (1,829 m) from the panel
• Powered by 24 VDC from the host FACP or a compatible remote power supply
