APB200-LF-WH MIRCOM

Product Overview

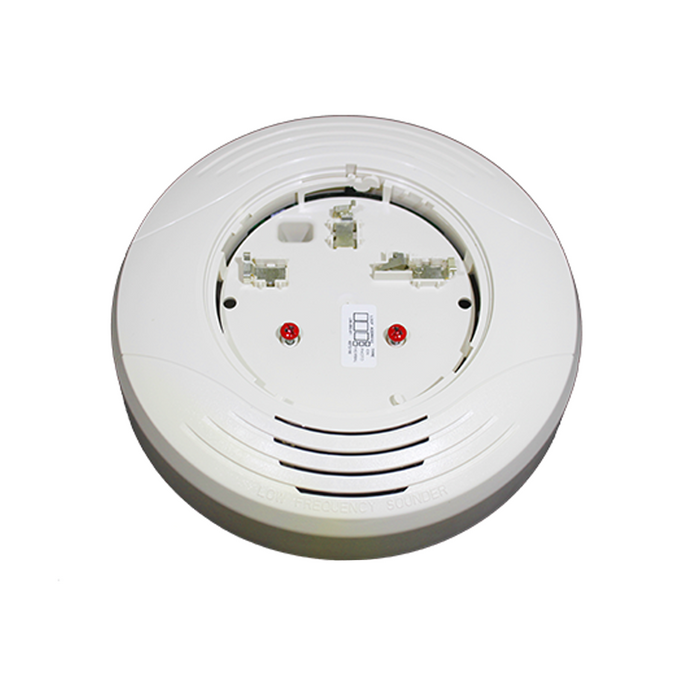

The Mircom APB200-LF-WH is an Intelligent Addressable Low Frequency (520Hz) Sounder Base. It is designed for use with Mircom's Advanced Protocol (AP) sensors. The "LF" indicates it produces the code-required 520Hz square wave tone necessary for sleeping room applications. The "WH" suffix denotes its White finish, matching the modern aesthetic of newer sensor heads. Unlike traditional sounder bases, this is an addressable device, meaning the Fire Alarm Control Panel (FACP) can command it to activate independently of the sensor head attached to it.

Key Features

• Low Frequency Tone: Specifically engineered to meet NFPA 72 requirements for sleeping areas, which require a lower frequency to improve wake-up rates.
• Addressable Flexibility: The base has its own address, allowing for "complex" programming where the sounder can be triggered by any event on the system, not just the local sensor.
• Advanced Protocol (AP) Only: Must be used with a panel and sensors that support the Advanced Protocol (such as the FX-400 or FleX-Net series).
• Multiple Tones: Supports Tempo 3, Temporal 4 (for CO), Continuous, and March Time tones.
• Synchronization: Automatically synchronizes with other sounder bases and horn/strobes on the same SLC or NAC circuit without the need for an external module.
• Simplified Installation: Uses a "plug-in" design that allows the sensor head to be swapped without disturbing the base wiring.
