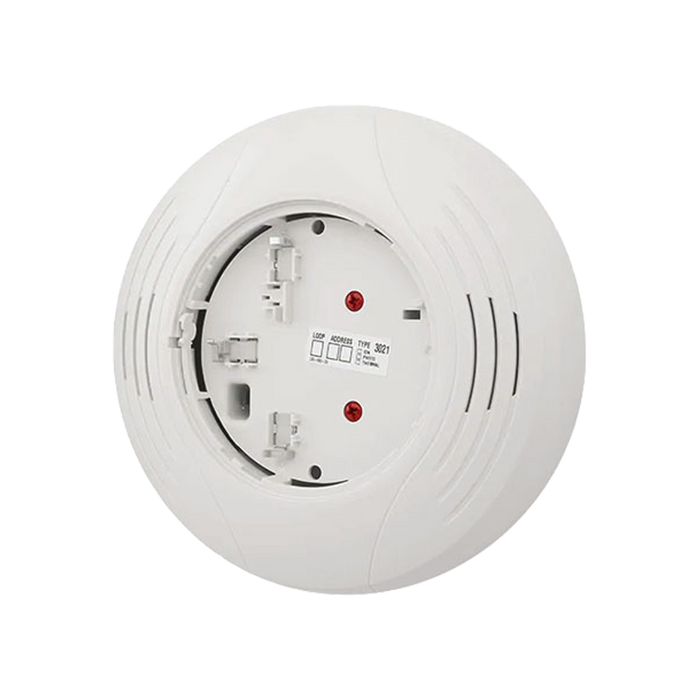

SYSTEM SENSOR B200S-WH

Product Overview

The B200S-WH is a white intelligent addressable sounder base designed to deliver reliable audible notification with selectable high or low sound output. It supports multiple signaling patterns, including ANSI Temporal 3, ANSI Temporal 4, continuous tone, marching tone, and programmable custom tones. Operating on the LiteSpeed protocol.

This architecture allows the Fire Alarm Control Panel (FACP) to individually activate a single sounder or control groups of sounders using event-based commands. Sounder behavior can be customized by the panel, enabling selection of output level (75 or 85 dBA), tone pattern, and activation grouping. Certain FACPs also support user-defined tone patterns for additional flexibility.

Key Features

• Intelligent addressable sounder base using LiteSpeed protocol
• Supports ANSI Temporal 3, ANSI Temporal 4, continuous, marching, and custom tone patterns
• Shares detector address while operating as a unique device type on the SLC
• Enables individual or group sounder activation via FACP commands
• UL 268 and UL 464 compliant
• Quick and secure detector plug-in design
• SEMS screws for secure and efficient wiring
• Accepts 12–24 AWG wiring for installation flexibility
