D365PL FIRE-LITE

Product Overview

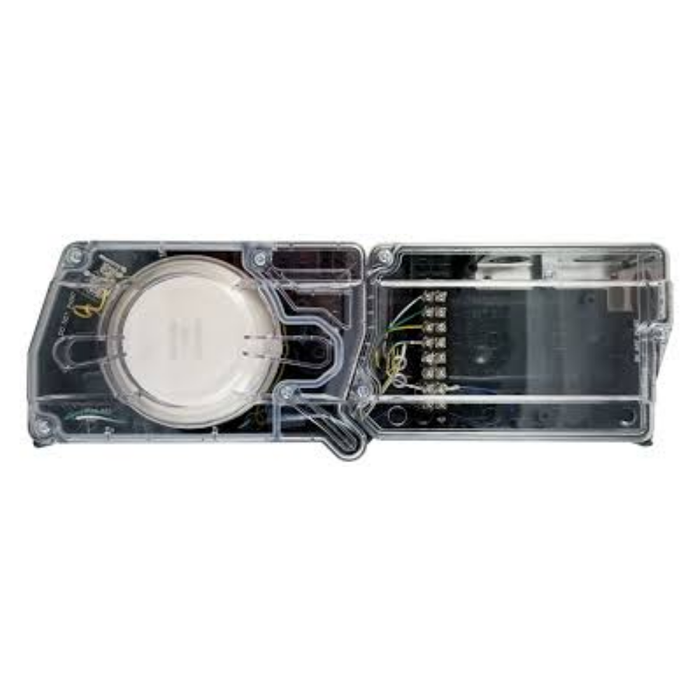

The D365PL and DNRW intelligent non-relay photoelectric duct smoke detectors from Fire-Lite Alarms are engineered for reliable smoke detection in HVAC duct applications, even under demanding environmental conditions. The D365PL includes a clear inspection cover and an addressable sensor head with integrated code wheels for simplified setup.

Key Features

• Photoelectric sensing with integrated low-flow technology
• Air velocity operation from 100 to 4,000 ft/min (0.5 – 20.32 m/s)
• Wide operating temperature range: -4°F to 158°F (-20°C to 70°C)
• Humidity tolerance: 0% – 93% non-condensing
• Flexible mounting for square or rectangular duct configurations
• Tool-free sampling tube installation from the front or back
• Expanded wiring space with 3/4" conduit knockout
• Accessible address code wheels on included sensor head (D365PL)
• Clear inspection cover for easy visual verification (D365PL only)
• Remote testing capability
